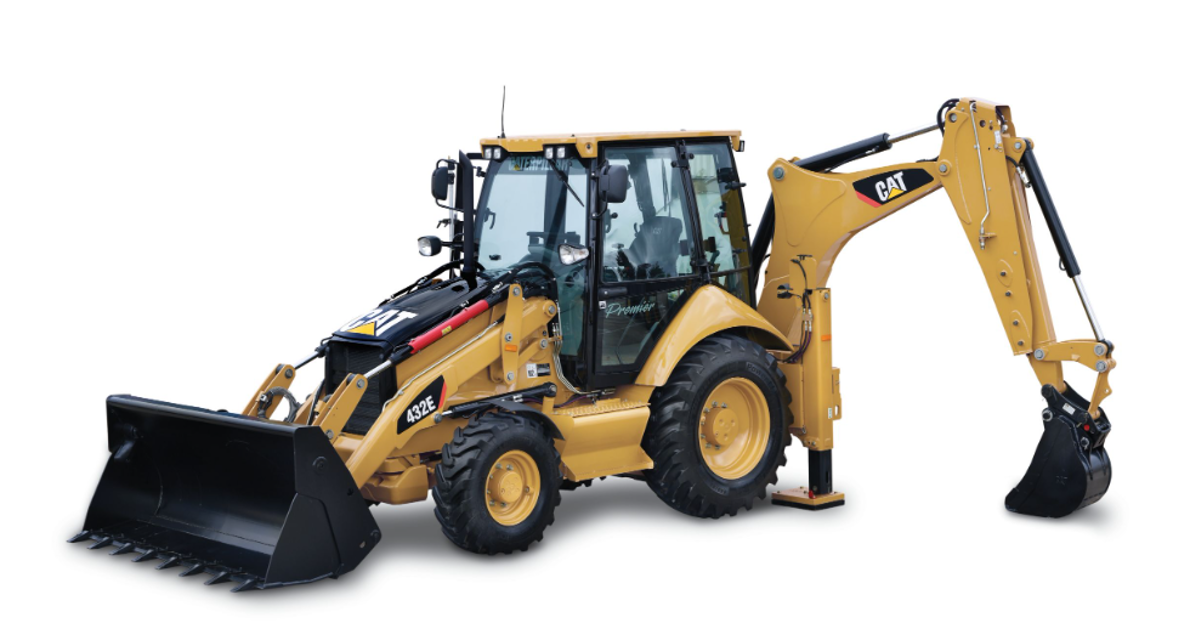

Caterpillar Backhoe Loader 432E

Cab Filter (Fresh Air) - Clean/Inspect/Replace

Do not clean the elements by bumping or tapping them.

Inspect the elements after cleaning. Do not use an element with damaged pleats, gaskets or seals.

When cleaning with pressure air, use 205 kPa (30 psi) maximum to prevent element damage by too much air pressure.

When cleaning with pressure water, use 280 kPa (40 psi) maximum to prevent element damage.

Clean the filter element weekly, but clean the filter element daily when there is a reduction of air circulation.

1. Open the filter cover that is located on the right fender.

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar Dealer Service Tool Catalog” for tools and supplies suitable to collect and contain fluids on Caterpillar products. Dispose of all fluids according to local regulations and mandates.

Obtain the sample of the coolant as close as possible to the recommended sampling interval. Supplies for collecting samples can be obtained from your Caterpillar dealer.

Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Sample obtained for Level 2 analysis?

Reference: For additional information about coolant analysis, refer to Special Publication, SEBU6250, “Caterpillar Machine Fluids Recommendations” or consult your Caterpillar dealer.

Sign off on the coolant sample collection

Engine Crankcase Breather - Replace

Loosen the clamp (9) and remove the hose (10) from the connector (12)

Remove the setscrews (8) and remove the connector (12) from the cylinder head. Remove the gasket (13). Remove the O-ring seal (11) from the connector. Discard the gasket (13) and the O-ring seal (11)

Remove the cover (1) from the valve mechanism cover (5)

WARNING: Personal injury can result from parts and/or covers under spring pressure. Spring force will be released when covers are removed. Be prepared to hold spring loaded covers as the bolts are loosened.

Remove the screws (2). Remove the plate (3)

Remove the diaphragm (4) and the cap (6). Remove the spring (7). Discard diaphragm (4)

WARNING: Improper assembly of parts that are spring loaded can cause bodily injury. To prevent possible injury, follow the established assembly procedure and wear protective equipment.

Install the spring (7), the cap (6), and a new diaphragm (4)

Backhoe Boom, Stick, Bucket, and Cylinder Bearings - Lubricate

Position the backhoe into the service position that is shown above. Lower the bucket to the ground. Relieve the hydraulic pressure and remove the load from the greased joints.

Apply lubricant to the grease fitting (1) for the rod end of the stick cylinder.

Apply lubricant to the grease fitting (2) for the head end of the boom cylinder and the head end of the stick cylinder.

Apply lubricant to the grease fitting (3) for the rod end of the boom cylinder.

Apply lubricant to the grease fitting (4) for the boom pivot. There is one grease fitting on each side of the machine.

Apply lubricant to the grease fitting (5) for the bucket pivot pin.

Apply lubricant to the grease fitting (6) for the link.

Apply lubricant to the grease fitting (7) for the rod end of the bucket cylinder.
