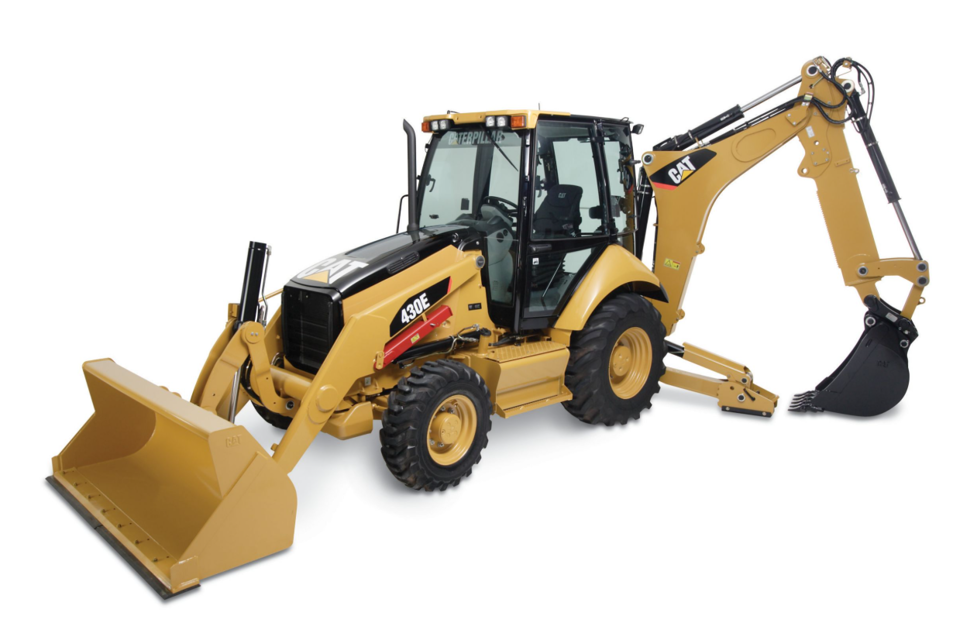

Caterpillar Backhoe Loader 430E

1. Ensure that the work tool is in a stable and safe storage position on the ground. Refer to Operation and Maintenance Manual, “Quick Coupler Operation - Hydraulic Pin Grabber Quick Coupler” for the proper procedure.

2. Wipe off the fitting before you lubricate the fitting.

3. Apply grease to the fitting of the quick coupler.

4. Check that all pin retainers are in place and that all bolts and nuts are tight, including the hydraulic cylinder mounting bolts.

5. Check the hydraulic hoses and fittings for any leaks, damage, or wear. Replace immediately if required.

6. Check the full operation of all the moving parts within the quick coupler. Repair or replace immediately if required.

7. Check that there is no material buildup around the rear locking mechanism, cylinder, or wedge plate. Check that there is no material buildup around the front locking mechanism.

8. Check the quick coupler for cracks, bent components, or wear;

1. Clean the area around the breathers. Remove the breather from the front axle.

2. Wash the breather in clean nonflammable solvent. Wipe the breather dry and check the breather for damage.

3. Install the clean breather back into the axle. Replace the breather if the breather is damaged.

Note: Make sure that the slot in the breather is parallel to the axle housing.

If new belts are installed, check belt adjustment after 30 minutes of operation. For multiple belt drive applications, always replace the belts in matched sets. Replacing only one belt of a matched set will cause the new belt to carry more load because the older belts are stretched. The additional load on the new belt could cause the new belt to break.

2. Inspect the condition of the serpentine belt. If the belt is worn or frayed, replace the belt.

Cooling System Water Temperature Regulator - Clean/Replace

Replace the thermostat on a regular basis in order to reduce the chance of unscheduled downtime and of problems with the cooling system. Failure to replace the engine's thermostat on a regularly scheduled basis could cause severe engine damage.

The thermostat should be replaced after the cooling system has been cleaned. Replace the thermostat while the cooling system is completely drained or while the cooling system coolant is drained to a level that is below the thermostat housing.

Note: If you are only replacing the thermostat, drain the cooling system coolant to a level that is below the thermostat housing.

Caterpillar engines incorporate a shunt design cooling system. It is mandatory to always operate the engine with a thermostat.

1. Install the lift cylinder brace. Refer to Operation and Maintenance Manual, “Lift Cylinder Brace - Connect and Disconnect” for more information.

3. Loosen the hose clamp and remove the hose from the thermostat housing assembly.

4. Remove the bolts from the thermostat housing assembly. Remove the thermostat housing assembly.

Note: The normal hydraulic oil change interval is at every 2000 Service Hours or 1 Year. By performing S·O·S oil analysis, the hydraulic oil change interval may be extended to 4000 Service Hours or 2 Years. S·O·S oil analysis must be performed at every 500 Service Hours or 3 Months in order to extend the hydraulic oil change interval.

The results from the S·O·S oil analysis will determine if the hydraulic oil change interval may be extended. If S·O·S oil analysis is not available, the hydraulic oil change interval must remain at every 2000 Service Hours or 1 Year.

Refer to the Operation and Maintenance Manual, “S·O·S Information”.

Note: Cat HYDO Advanced 10 has a 50% increase in the standard oil drain interval for machine hydraulic systems (3000 hours versus 2000 hours) over second and third choice oils - when following the maintenance interval schedule for oil filter changes and for oil sampling that is stated in the Operation and Maintenance Manual for your particular machine.

6000 hour oil drain intervals are possible when using S·O·S Services oil analysis. Contact your Cat dealer for details.

Operate the machine for a few minutes in order to warm the hydraulic system oil.

The machine should be level . Lower the bucket to the ground and apply slight downward pressure. Engage the parking brake and stop the engine.

The hydraulic tank filler cap is located under the access door on the top of the engine compartment.

Note: A qualified service person should perform the valve lash check and/or the valve lash adjustment. Special tools and training are required.
