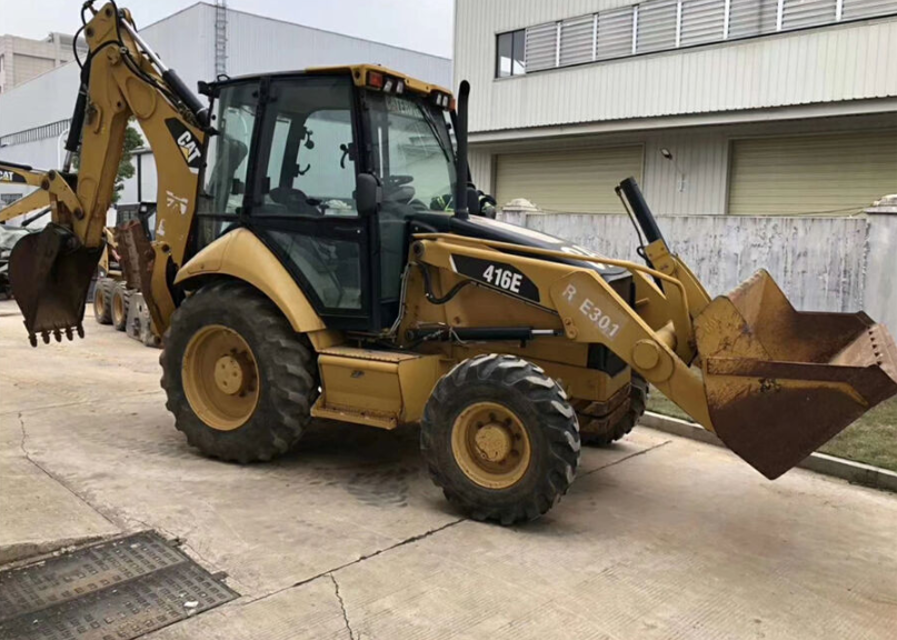

Caterpillar Backhoe Loader 416E

Is the date of installation label present?

If the date of installation label is missing, replace belt within 3 years from the year of manufacture as indicated on belt webbing label, buckle housing, or installation tags (non-retractable belts).

Consult your Cat dealer for the replacement of the seat belt and the mounting hardware.

Manufacture date of new seat belt

Does the new seat belt exceed the install by date on label?

Complete seat belt system should be installed with new mounting hardware.

Date of installation of new seat belt system

Backhoe Control Console Latch - Lubricate

1. Remove the three bolts and remove the console(1).

2. Place the latch in the closed position.

3. Apply 242-6990 Lubricant onto the following:

• Pivot for the release lever (2)

• Notches and catch for the rotor (5)

• Contact for the release lever (6)

Backhoe Boom, Stick, Bucket, and Cylinder Bearings - Lubricate

Position the backhoe into the service position that is shown above. Lower the bucket to the ground. Relieve the hydraulic pressure and remove the load from the greased joints.

Apply lubricant to the grease fitting (1) for the rod end of the stick cylinder.

Apply lubricant to the grease fitting (2) for the head end of the boom cylinder and the head end of the stick cylinder.

Apply lubricant to the grease fitting (3) for the rod end of the boom cylinder.

Apply lubricant to the grease fitting (4) for the boom pivot. There is one grease fitting on each side of the machine.

Apply lubricant to the grease fitting (5) for the bucket pivot pin.

Apply lubricant to the grease fitting (6) for the link.

Apply lubricant to the grease fitting (7) for the rod end of the bucket cylinder.

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Dispose of all fluids according to local regulations and mandates.

Supplies for collecting samples can be obtained from your Caterpillar dealer.

Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Submit the sample for Level 2 analysis.

Reference: For additional information about coolant analysis, refer to Special Publication, SEBU6250, “Caterpillar Machine Fluids Recommendations” or consult your Caterpillar dealer.

Cooling System Coolant Sample (Level 2) - Obtained

Upload the coolant sample analysis report

Sign off on the coolant sample collection and analysis

WARNING: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

NOTICE: Mixing ELC with other products will reduce the effectiveness of the coolant. This could result in damage to cooling system components.

Note: This machine is shipped with Extended Life Coolant. Extended Life Coolant is recommended for use.

Flushing the Extended Life Coolant From the Cooling System

Flushing a Standard Coolant From the Cooling System

Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

NOTICE: Do not change the coolant until you read and understand the material in the Cooling System Specifications section.

Install the lift cylinder brace.
