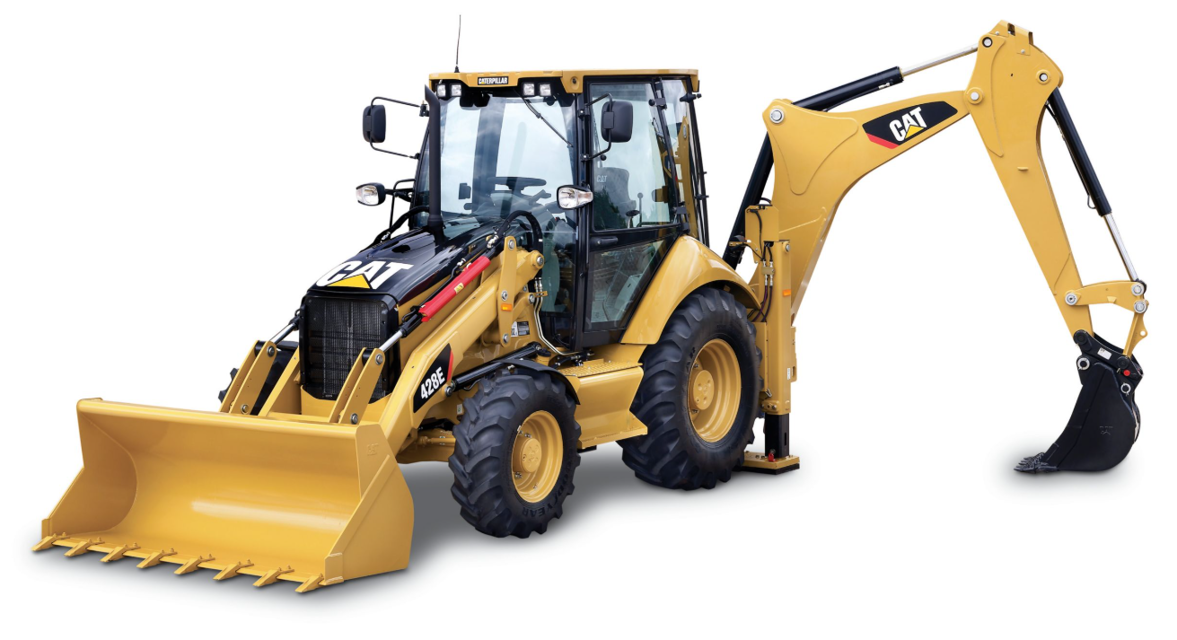

Caterpillar Backhoe Loader 428E

Differential Oil (Front) - Change

1. Remove oil drain plug (1) and drain the oil into a suitable container.

2. The drain plug is magnetic. Check the plug for metal.

3. Clean the drain plug and install the drain plug.

4. Remove oil level/fill plug (2).

5. Add oil until the oil is level with the threads for the filler plug. Refer to Operation and Maintenance Manual, “Lubricant Viscosities” and Operation and Maintenance Manual, “Capacities (Refill)” for oil.

6. Clean the filler plug and install the filler plug.

Differential Oil (Rear) - Change

The oil change interval should be decreased to 500 hours if more than 50% of the service hours is used for roading and loading.

WARNING: Pressurized system: Hot coolant can cause serious burn. To open cap, stop engine, wait until radiator is cool. Then loosen cap slowly to relieve the pressure.

NOTICE: Mixing ELC with other products will reduce the effectiveness of the coolant. This could result in damage to cooling system components.

If Caterpillar products are not available and commercial products must be used, make sure they have passed the Caterpillar EC-1 specification for premixed or concentrate coolants and Caterpillar Extender.

Note: This machine is shipped with Extended Life Coolant. Extended Life Coolant is recommended for use.

For information about the addition of Extender to your cooling system, see the Operation and Maintenance Manual, “Cooling System Coolant Extender (ELC) - Add” or consult your Caterpillar dealer.

Flushing the Extended Life Coolant From the Cooling System

Some engines utilize Extended Life Coolant. See the Operation and Maintenance Manual, “Maintenance Interval Schedule” in order to determine the service interval.

If a Extended Life Coolant was previously used, flush the cooling system with clean water. No other cleaning agents are required.

Flushing a Standard Coolant From the Cooling System

Cooling System Water Temperature Regulator - Clean/Replace

Thermostat replaced regularly to avoid engine damage

Replace the thermostat after the cooling system has been cleaned

Cooling system drained to a level below the thermostat housing before replacement

Caterpillar engines incorporate a shunt design cooling system. It is mandatory to always operate the engine with a thermostat.

Hose removed from the thermostat housing assembly

Bolts removed from the thermostat housing assembly

Cab Filter (Fresh Air) - Clean/Inspect/Replace

Do not clean the elements by bumping or tapping them.

Inspect the elements after cleaning. Do not use an element with damaged pleats, gaskets or seals.

When cleaning with pressure air, use 205 kPa (30 psi) maximum to prevent element damage by too much air pressure.

When cleaning with pressure water, use 280 kPa (40 psi) maximum to prevent element damage.

Clean the filter element weekly, but clean the filter element daily when there is a reduction of air circulation.

1. Open the filter cover that is located on the right fender.

1. Clean the area around the breathers. Remove the breather from the front axle.

2. Wash the breather in clean nonflammable solvent. Wipe the breather dry and check the breather for damage.

3. Install the clean breather back into the axle. Replace the breather if the breather is damaged.

Note: Make sure that the slot in the breather is parallel to the axle housing.

If new belts are installed, check belt adjustment after 30 minutes of operation. For multiple belt drive applications, always replace the belts in matched sets. Replacing only one belt of a matched set will cause the new belt to carry more load because the older belts are stretched. The additional load on the new belt could cause the new belt to break.

2. Inspect the condition of the serpentine belt. If the belt is worn or frayed, replace the belt.
