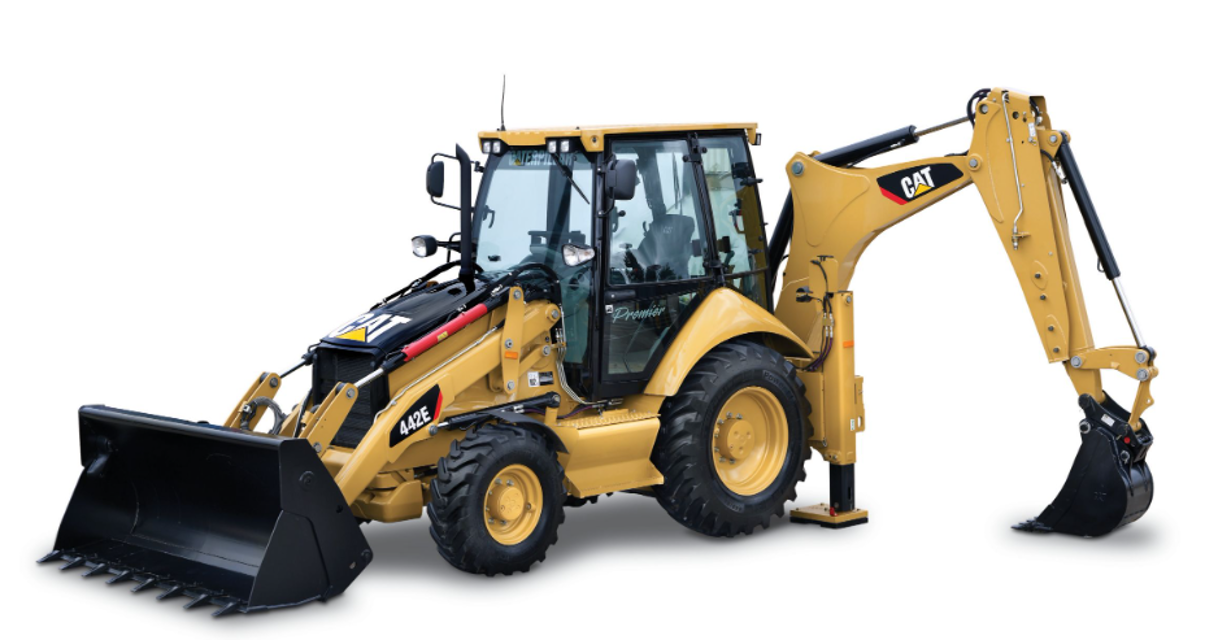

Caterpillar Backhoe Loader 442E

Cooling System Water Temperature Regulator - Clean/Replace

Thermostat replaced regularly to avoid engine damage

Replace the thermostat after the cooling system has been cleaned

If only replacing the thermostat, drain the cooling system coolant to a level that is below the thermostat housing

Caterpillar engines incorporate a shunt design cooling system. It is mandatory to always operate the engine with a thermostat

Hose removed from the thermostat housing assembly

Bolts removed from the thermostat housing assembly

Cab Filter (Fresh Air) - Clean/Inspect/Replace

Do not clean the elements by bumping or tapping them.

Inspect the elements after cleaning. Do not use an element with damaged pleats, gaskets or seals.

When cleaning with pressure air, use 205 kPa (30 psi) maximum to prevent element damage by too much air pressure.

When cleaning with pressure water, use 280 kPa (40 psi) maximum to prevent element damage.

Clean the filter element weekly, but clean the filter element daily when there is a reduction of air circulation.

1. Open the filter cover that is located on the right fender.

1. Clean the area around the breathers. Remove the breather from the front axle.

2. Wash the breather in clean nonflammable solvent. Wipe the breather dry and check the breather for damage.

3. Install the clean breather back into the axle. Replace the breather if the breather is damaged.

Note: Make sure that the slot in the breather is parallel to the axle housing.

If new belts are installed, check belt adjustment after 30 minutes of operation. For multiple belt drive applications, always replace the belts in matched sets. Replacing only one belt of a matched set will cause the new belt to carry more load because the older belts are stretched. The additional load on the new belt could cause the new belt to break.

2. Inspect the condition of the serpentine belt. If the belt is worn or frayed, replace the belt.

NOTICE: Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be prepared to collect the fluid with suitable containers before opening any compartment or disassembling any component containing fluids.

Refer to Special Publication, NENG2500, “Caterpillar Dealer Service Tool Catalog” for tools and supplies suitable to collect and contain fluids on Caterpillar products. Dispose of all fluids according to local regulations and mandates.

Obtain the sample of the coolant as close as possible to the recommended sampling interval. Supplies for collecting samples can be obtained from your Caterpillar dealer.

Refer to Operation and Maintenance Manual, “Cooling System Coolant Sample (Level 1) - Obtain” for the guidelines for proper sampling of the coolant.

Submit the sample for Level 2 analysis.

Reference: For additional information about coolant analysis, refer to Special Publication, SEBU6250, “Caterpillar Machine Fluids Recommendations” or consult your Caterpillar dealer.

Sign off on the coolant sample collection and analysis

Note: The normal hydraulic oil change interval is at every 2000 Service Hours or 1 Year. By performing S·O·S oil analysis, the hydraulic oil change interval may be extended to 4000 Service Hours or 2 Years. S·O·S oil analysis must be performed at every 500 Service Hours or 3 Months in order to extend the hydraulic oil change interval.

The results from the S·O·S oil analysis will determine if the hydraulic oil change interval may be extended. If S·O·S oil analysis is not available, the hydraulic oil change interval must remain at every 2000 Service Hours or 1 Year.

Refer to the Operation and Maintenance Manual, “S·O·S Information”.

Note: Cat HYDO Advanced 10 has a 50% increase in the standard oil drain interval for machine hydraulic systems (3000 hours versus 2000 hours) over second and third choice oils - when following the maintenance interval schedule for oil filter changes and for oil sampling that is stated in the Operation and Maintenance Manual for your particular machine.

6000 hour oil drain intervals are possible when using S·O·S Services oil analysis. Contact your Cat dealer for details.

Operate the machine for a few minutes in order to warm the hydraulic system oil.

The machine should be level . Lower the bucket to the ground and apply slight downward pressure. Engage the parking brake and stop the engine.

The hydraulic tank filler cap is located under the access door on the top of the engine compartment.
