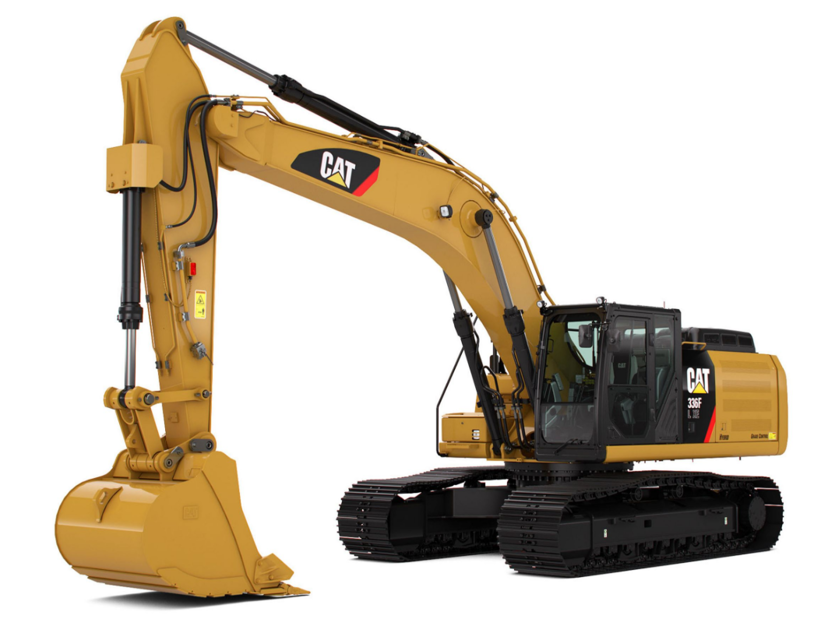

The Caterpillar Excavator 336FLN XE is a robust and efficient piece of heavy machinery designed for optimal performance in construction and excavation tasks. Known for its advanced hydraulic system and durability, this excavator model excels in various applications, ensuring productivity and reliability on the job site.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Caterpillar Excavator 336FLN XE

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Caterpillar Excavator 336FLN XE

Create an account to install this asset package.

Maintenance Plans for Caterpillar Excavator Model 336FLN XE

Integrate maintenance plans directly into your work orders in MaintainX.

Rocker Arm Assembly

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

All components of the rocker arm shaft lubricated with clean engine oil

Exhaust rocker arm and inlet rocker arm installed on rocker shaft

Depth of plug into rocker shaft (in mm)

Rocker arm and shaft installed

Run this procedure

Cylinder Head Removal

Start By:

Remove the exhaust manifold

Remove the fan drive mounting group

Remove the fuel rail and the fuel manifold

Remove the fuel filter base

Remove the inlet manifold

Remove the rocker arm and shaft

Remove the unit injectors

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

Run this procedure

Cylinder Head Installation

NOTICE: Keep all parts clean from contaminants. Contaminants may cause rapid wear and shortened component life.

Check the O-ring seals, the gaskets, and the seals for wear or for damage.

Note: Attach a suitable lifting device to cylinder head (7). The weight of cylinder head (7) is approximately 147 kg (325 lb).

Position cylinder head (7)

Note: Examine bolts (5) for wear or for damage. Refer to Reuse And Salvage Guidelines, SEBF8301, 'Inspection and Reuse of Critical Fasteners Used in All Engines'.

Replace with new bolts (5), if necessary.

Install bolts (5) and install bolts (6).

Sign off on the cylinder head installation

Run this procedure
