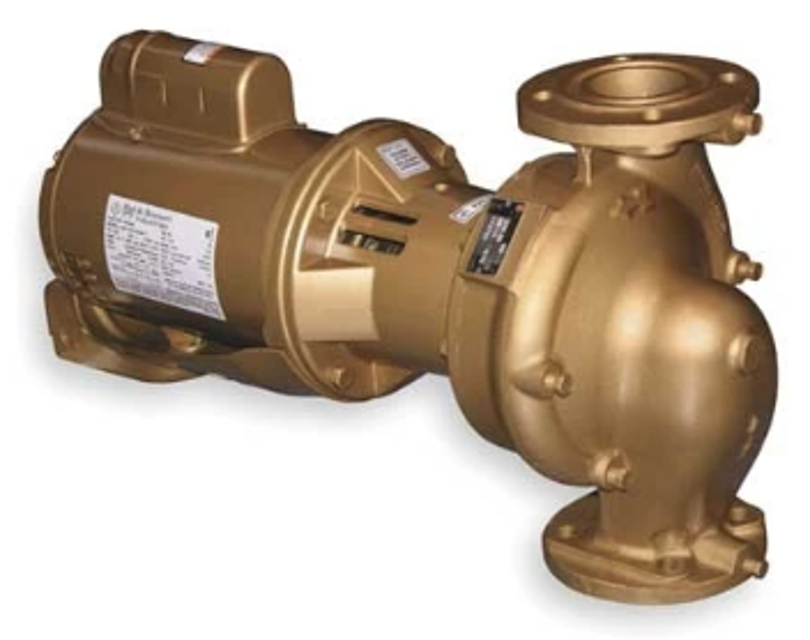

Bell & Gossett In-Line Centrifugal Pump Series 60 1x5^1/4

Bell & Gossett In-Line Centrifugal Pump Series 60 1x5^1/4

Create an account to install this asset package.

Maintenance Plans for Bell & Gossett In-Line Centrifugal Pump Model Series 60 1x5^1/4

Integrate maintenance plans directly into your work orders in MaintainX.

Spring Type Coupler Replacement

Check mark

Coupler Removal

Check mark

Remove the motor as outlined in the section titled 'Motor Removal'.

Check mark

Remove old coupler from the pump shaft by almost completely backing-out the setscrew located in the pump side coupler half.

Check mark

Coupler Installation

Check mark

Install the new coupler on the pump shaft. Ensure the coupler set screw is seated in the shaft dimple.

Check mark

Lift the motor into position and attach the motor side coupler half. Ensure the coupler set screw is seated in the shaft dimple.

Check mark

Complete the installation by reversing the steps outlined in the section titled 'Motor Removal,' starting with step #5.

Check mark

Check for proper motor rotation after motor has been reconnected.

Run this procedureArrow right

Seal Replacement

Check mark

Remove the bearing assembly and the impeller

Check mark

Remove the spring retainer and seal spring

Check mark

Pry the compression ring off the seal boot

Check mark

Pry the seal head off the shaft

Check mark

Loosen and remove the seal seat and gasket

Check mark

Inspect the seat retainer

Check mark

Clean the shaft sleeve and seal seat recess

Check mark

Install the seat gasket and seat into the seat recess

Check mark

Lubricate the seal boot and slide the complete seal head over the shaft

Run this procedureArrow right

Motor Replacement

Check mark

Motor Removal

Check mark

Turn off and lock out power to the motor

Check mark

Verify pump body diagram

Check mark

Remove conduit box cover

Check mark

Disconnect power leads from motor leads

Check mark

Remove conduit and power leads from conduit box

Check mark

Support the motor and remove the four screws holding the motor to the bearing assembly

Check mark

Pull the motor off the bearing assembly

Check mark

Motor Installation

Run this procedureArrow right

Bearing Assembly Replacement

Check mark

System Shutdown and Preparation

Check mark

Shut the system off and allow it to cool to at least 100°F before servicing the pump.

Check mark

Close the system fill valve.

Check mark

Close service (isolation) valves if present on either side of the pump.

Check mark

Drain the system by opening the system drain valve and a vent located near the top of the system.

Check mark

Motor and Bearing Assembly Removal

Check mark

Remove the motor as outlined in the section titled 'Motor Removal'.

Check mark

Remove the eight capscrews that hold the bearing assembly or adapter ring to the volute.

Check mark

Remove the bearing assembly.

Run this procedureArrow right

Elastomeric Type Coupler Replacement

Check mark

Coupler Removal

Check mark

Remove the motor as outlined in the section titled 'Motor Removal'.

Check mark

Loosen the coupler setscrew(s) and remove the coupler halves from the pump and motor shafts.

Check mark

Coupler Installation

Check mark

Place the new insert in the pump side coupler half.

Check mark

Lift the motor into position, align the insert and motor coupler half, then bolt the motor in place.

Check mark

Position the coupler half on the pump shaft

Check mark

Select the pump shaft type

Check mark

For pump shafts with a dimple, position the coupler set screw over the dimple and tighten.

Run this procedureArrow right
