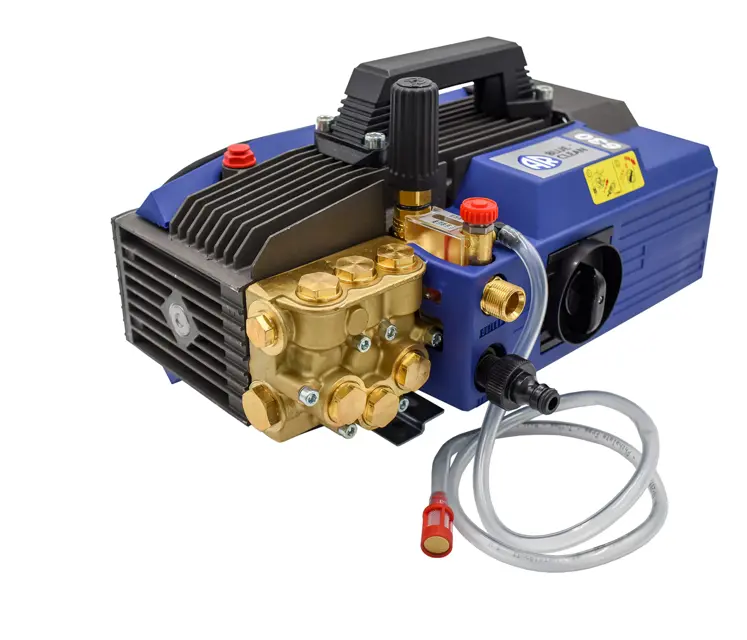

Annovi Reverberi Electric Pressure Washer 630 TSS HOT

Ensure you have a Phillips screwdriver available

Remove the cap from the power washer unit (C)

Insert the breather cap (F) into the power washer unit (C)

High Pressure Hose Connection to Power Washer Unit

Pull back on collar at the other end of high pressure hose (E)

Push firmly to connect hose to power washer unit (C)

Remove the screen and washer from the adapter

Rinse the screen with clean water

Place the screen and washer back in the adapter

Turn off the water supply to the unit

Relieve pressure in the hose by squeezing the trigger 2-3 times

Lock the spray gun by pushing the lock button from left to right

Remove the lance from the extension lance

Insert the wire into the nozzle hole and move back and forth until debris is dislodged

Tap quick connect end of lance on hard surface several times

Ensure Phillips screwdriver is available

Locking Spray Gun (Before Lance Installation)

Aim the spray gun away and push the lock button from right to left

Squeeze or pull the trigger to ensure it is locked

Leave lock button in locked position when not in use

Variable Spray Nozzle Lance Installation

Insert lance into the end of spray gun and turn clockwise until fully in place

Remove lance by turning counterclockwise
