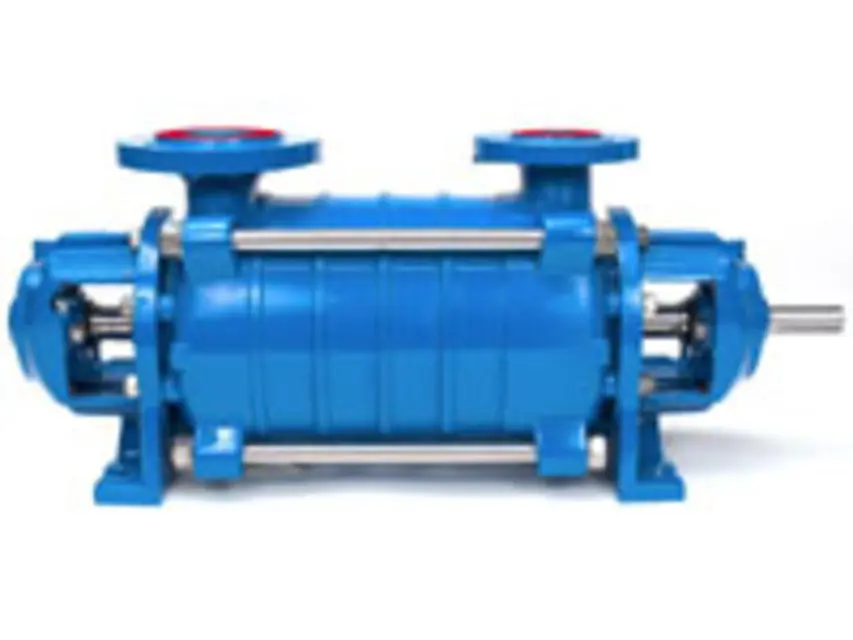

Goulds Pumps Pump 3355 1.5 x 2.5-7A-3600

Create an account to install this asset package.

Maintenance Plans for Goulds Pumps Pump Model 3355 1.5 x 2.5-7A-3600

Integrate maintenance plans directly into your work orders in MaintainX.

3 Monthly Pump Alignment Inspection

6.1 Maintenance schedule — Three-month inspections

Check that the foundation and the hold-down bolts are tight

Check the shaft alignment

Realign the shaft if required

Shorten the inspection intervals if the pumped fluid is abrasive or corrosive or if the environment is classified as potentially explosive

Run this procedure

1 Yearly Pump Performance Inspection

6.1 Maintenance schedule — Annual inspections

Enter the pump capacity

Enter the pump pressure

Enter the pump power

Does the pump performance satisfy the process requirements?

If the pump performance does not satisfy the process requirements, and the process requirements have not changed, then disassemble the pump, inspect it, and replace worn parts.

Is the pumped fluid abrasive or corrosive, or is the environment classified as potentially explosive?

If yes, describe how you will shorten the inspection intervals

Run this procedure

Mechanical Seal Inspection

Mechanical-seal maintenance

Check the seal and all flush piping before starting the pump

Ensure the cleanliness of the pumped fluid

Verify the type of mechanical seal used

Disengage holding clips for cartridge seals installed by the user

Keep the manufacturer's reference drawing for future maintenance

Verify the required flush fluid and attachment points as per the seal drawing

Is the mechanical seal operating without any leaks?

Describe any issues found during the inspection

Run this procedure

Coupling Alignment Check

4.3.1 Alignment checks

Perform alignment checks under these circumstances

Enter the Total Indicated Reading (T.I.R.) at operating temperature

Enter the tolerance of the indicator

4.3.3 Alignment measurement guidelines

Rotate the pump coupling half and the driver coupling half together so that the indicator rods have contact with the same points on the driver coupling half.

Move or shim only the driver to make adjustments.

Are the hold-down bolts for the driver tight when taking indicator measurements?

Are the hold-down bolts for the driver loose before making alignment corrections?

Run this procedure

3800 Hourly Ball Bearing Lubrication

Grease lubrication schedule

Re-lubrication intervals by speed

Enter the actual operating speed (rpm)

Enter the grease quantity for suction side (oz)

Enter the grease quantity for discharge side (oz)

Lubricating-grease requirements

Select the grease type used
