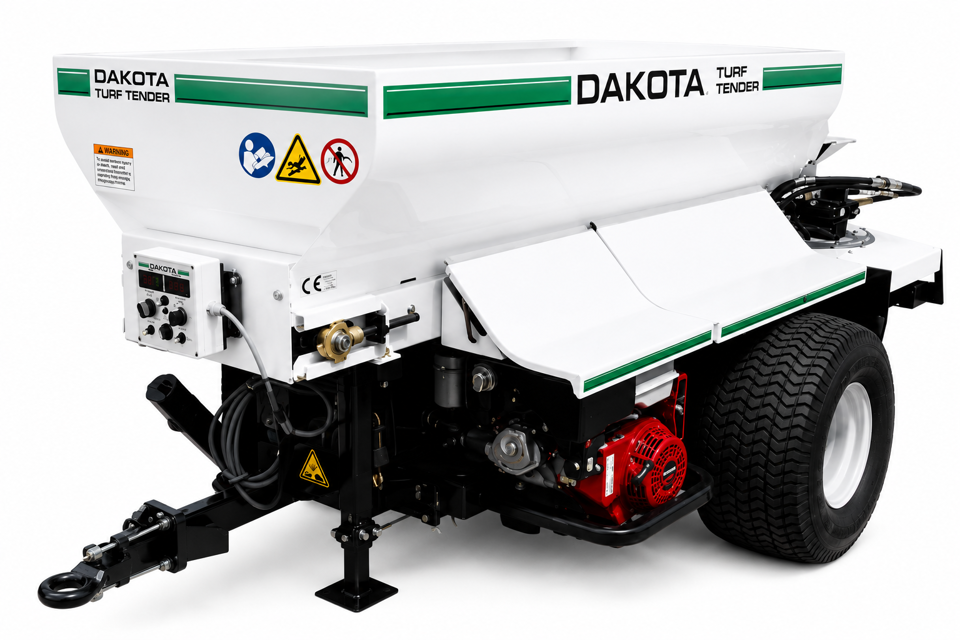

Dakota Peat & Equipment Turf Tender 411

Position the conveyor belt rear roller 5 1/4 in. (13.3 cm) from back wall of vertical chute.

Ensure the conveyor belt is properly aligned and tensioned.

Are all tires properly inflated to the recommended pressure range?

Verify that the spinner shafts are vertical.

Adjust the hopper wipers tightly down onto the conveyor belt.

Set the metering gate opening to the approximate material flow rate.

Calibrate spinner speed to 325-350 RPM.

Lubricate side conveyor bearings

Position conveyor belt rear roller 5 1/4 in. (13.3 cm) from back wall of vertical chute

Ensure conveyor belt is properly aligned and tensioned

Are all trailer-type model tires properly inflated?

Ensure spinner shafts are vertical

Adjust hopper wipers tightly down onto the conveyor belt

Set metering gate opening to approximate material flow rate

Calibrate spinner speed to 325-350 RPM

Empty all material from the hopper

Chock the wheel(s) on the opposite side of the Turf Tender

Hook the Turf Tender to a tractor with the parking brake set

Jack up the frame directly in front of the axle mount

Support the frame with jack stands

Ensure no cement blocks or unstable piles of wood blocks are used

Loosen the four bolts securing the motor mount to the frame

Loosen the jam nut on right-hand adjusting bolt

Adjust the adjusting bolts to loosen or tighten the belt

Test the conveyor for proper tension and alignment
