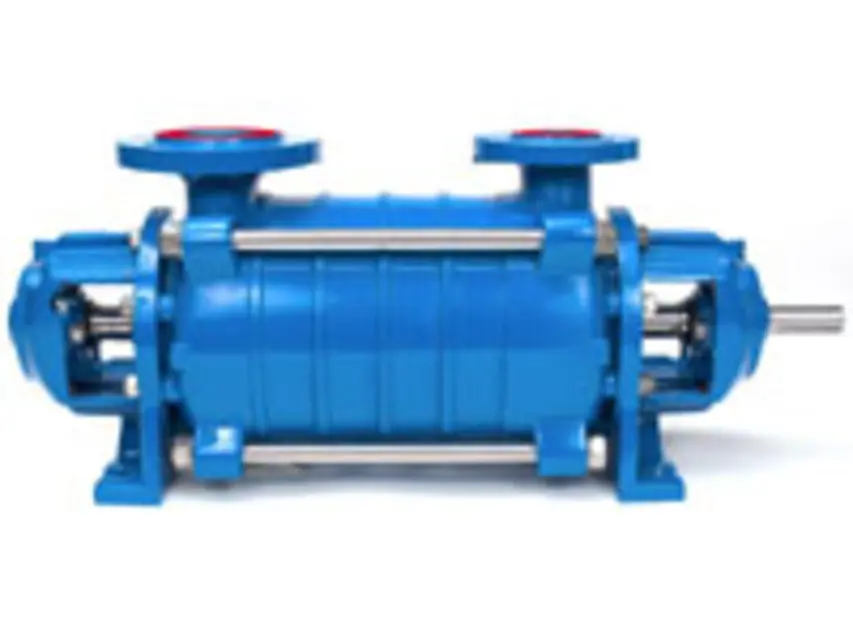

Goulds Pumps Pump 3355 4 x 5-10B-3600

Check the seal and all flush piping before starting the pump

Ensure the cleanliness of the pumped fluid

Verify the type of mechanical seal used

Disengage holding clips for cartridge seals installed by the user

Keep the manufacturer's reference drawing for future use

Verify the required flush fluid and attachment points as per the seal drawing

6.2.5 Lubricate the bearings after a shutdown period

Flush out the bearings and bearing frame with a light oil to remove contaminants

Flush the bearing housing with the proper lubricating oil to ensure oil quality after cleaning

5.9 Make the final alignment of the pump and driver

Run the unit under actual operating conditions to reach operating temperature

Shut down the pump and the driver

Check the alignment while the unit is still hot

Enter the Total Indicated Reading (T.I.R.) at operating temperature

Is the T.I.R. 0.05 mm | 0.002 in. or less?

6.1 Maintenance schedule — Routine maintenance

Perform routine maintenance tasks

Is the pumped fluid abrasive or corrosive, or is the environment potentially explosive?

Shorten the inspection intervals if necessary

6.1 Maintenance schedule — Routine inspections

Perform routine inspection tasks

Is the pumped fluid abrasive or corrosive, or is the environment potentially explosive?

Shorten the inspection intervals if necessary

Are temperature and vibration levels retrieved using i-ALERT® monitoring sensor and app?

6.1 Maintenance schedule — Three-month inspections

Check that the foundation and the hold-down bolts are tight

Check the shaft alignment, and realign as required

Is the pumped fluid abrasive or corrosive?

Is the environment classified as potentially explosive?
