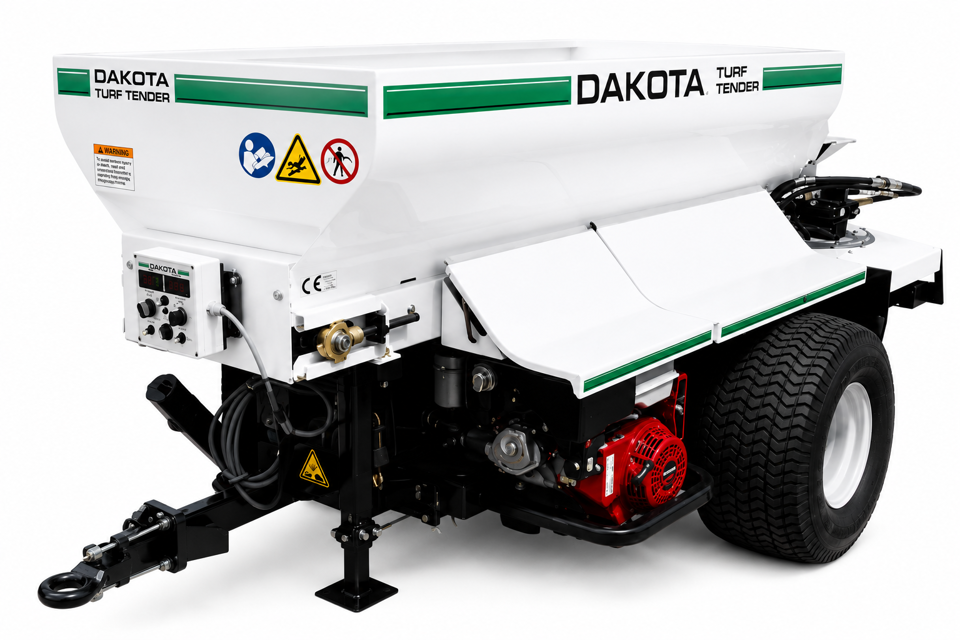

Dakota Peat & Equipment Turf Tender 412

WARNING: Ensure Safety Before Road Tests

Ensure the area is clear of vehicular and pedestrian traffic

Tow the Turf Tender at slow speed (approximately 8 mph) on a hard, level, and dry road surface

Activate the brake switch and hold for a few seconds; then release

Repeat the procedure until the brakes operate properly

Place the cover back into position and secure

Consult the lubrication chart for recommended lubrication schedule

Lubricate side conveyor bearings

Ensure adequate work space around the Turf Tender

Open and secure the front and rear gates

If equipped with a side conveyor, swing it to the operating position for full access to both sides of the Turf Tender

Shut off the tractor engine before starting maintenance

Remove the spinner assembly and both fenders

Remove the front and rear hydraulic motors and mounting brackets

Loosen the jam nut securing each of the four belt tensioning bolts

Connect the ground clip from the test light to a solid ground (WHITE wire)

Pierce the brake wire (BLUE wire) with the point of the test light

Activate the brake switch and hold

Does the test light get steadily brighter in intensity?

Does the test light go out after releasing the brake switch?

Empty all material from the hopper

Chock the wheel(s) on the opposite side of the Turf Tender

Hook the Turf Tender to a tractor with the parking brake set

Jack up the frame directly in front of the axle mount

Support the frame with jack stands

Ensure no cement blocks or unstable piles of wood blocks are used
