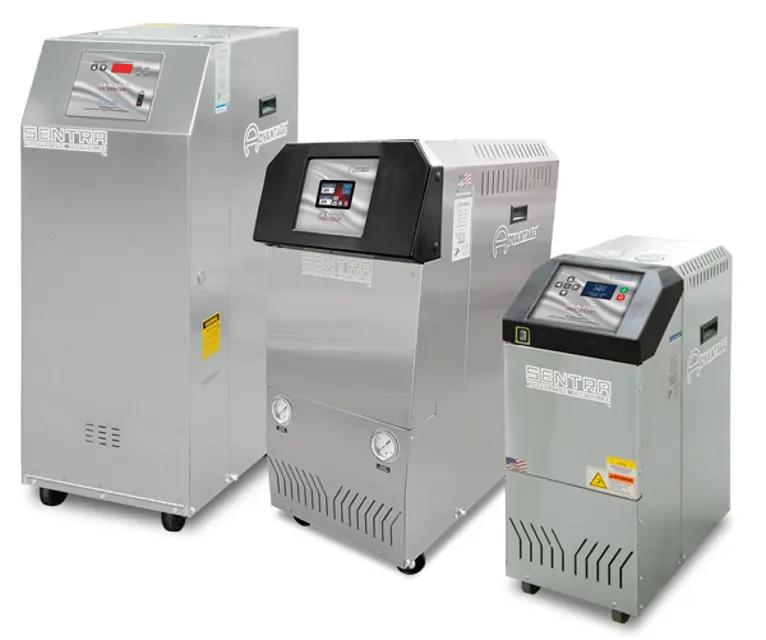

Advantage Temperature Controller SRG-1045

Unbox the unit before accepting delivery

Document any evident damage on the delivery receipt

Did you refuse the shipment due to damage?

Take photographs of any suspected damage

Shake out the water from the connection

Did the yellow Alert icon disappear?

Stop process operations as described in section 3.4 of the manual

Ensure all process pressure is relieved and pressure gauges read '0' pressure

Drain the unit by removing the pump casing drain plug

Ensure all necessary equipment is available

Disengage process operations according to the unit manual

Remove the 'to process' temperature probe and insert a ½” plug

Prepare an ice bath and place a digital thermometer in it

Place the probe in the ice bath

Shut down unit operations according to section 3.4 in the manual

Ensure proper lock-out procedures are followed

Confirm system pressure is eliminated and pressure gauges read '0' psi

Drain unit by removing the pump casing drain plug

Remove the capillary connection from the cooling cylinder to the pressure switch

Remove the brass elbow mounted on the pressure switch

Disconnect the electrical connections to the pressure switch

Consult with Advantage Service Department to determine if unit can be converted. Record the outcome.

Enter the Serial Number of the unit.

Call 317-887-0729 for consultation.

Consult factory for other power conversions and record details.

Items Requiring Replacement or Rewiring

Identify items for replacement or rewiring
