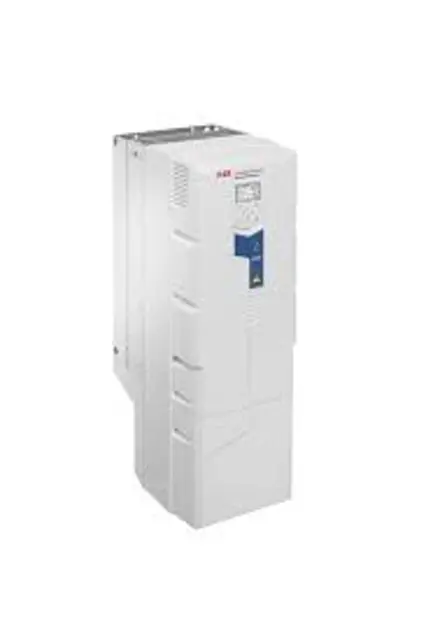

ABB Water Drive ACQ580-01-206A-4

Warning: This procedure requires trained personnel with PPE!

Are all components within their mission time?

If any component is beyond its mission time, proceed with the following steps

Choose the type of service done

Select the components that have been renewed

Enter the age of the oldest component in the circuit

Did the safety function pass the post-replacement test?

Sign off on the safety components replacement

Warning: This procedure requires a qualified electrical professional. Do not attempt if you are not qualified.

Before starting, ensure you have the correct replacement fans from the manufacturer. Do not use other than specified spare parts.

Clearly identified the work location and equipment?

Disconnected all possible voltage sources and ensured re-connection is not possible?

Protected any other energized parts in the work location against contact?

Taken special precautions when close to bare conductors?

Measured that the installation is de-energized using a quality voltage tester?

Installed temporary grounding as required by the local regulations?

Warning: This procedure requires a qualified electrical professional. Do not proceed if you are not qualified.

Clearly identified the work location and equipment

Disconnected all possible voltage sources and ensured re-connection is not possible

Protected any other energized parts in the work location against contact

Special precautions taken when close to bare conductors

Measured that the installation is de-energized using a quality voltage tester

Installed temporary grounding as required by the local regulations

Obtained a permit to work from the person in control of the electrical installation work

Electrical safety in installation, start-up and maintenance

WARNING! Obey these instructions. If you ignore them, injury or death, or damage to the equipment can occur.

If you are not a qualified electrical professional, do not do installation or maintenance work.

Do these steps before you begin any installation or maintenance work.

Clearly identify the work location and equipment.

Disconnect all possible voltage sources. Make sure that re-connection is not possible. Lock out and tag out.

Protect any other energized parts in the work location against contact.

Take special precautions when close to bare conductors.

Parameter 05.04 Fan on-time counter indicates the running time of the cooling fan. Reset the counter after a fan replacement. See the firmware manual.

In a speed-controlled fan, the speed of the fan matches the cooling needs. This increases the life span of the fan.

Main fans are speed controlled. When the drive is stopped, the main fan runs at low speed until the drive cools down. IP21 (UL Type 1) frames R5..R9 and all IP55 (UL Type 12) frames have auxiliary fans that are not speed controlled and run all the time when the control unit is powered.

Replacement fans are available from the manufacturer. Do not use other than specified spare parts.

Electrical safety in installation, start-up and maintenance

These electrical safety precautions are for all personnel who do work on the drive, motor cable or motor.
