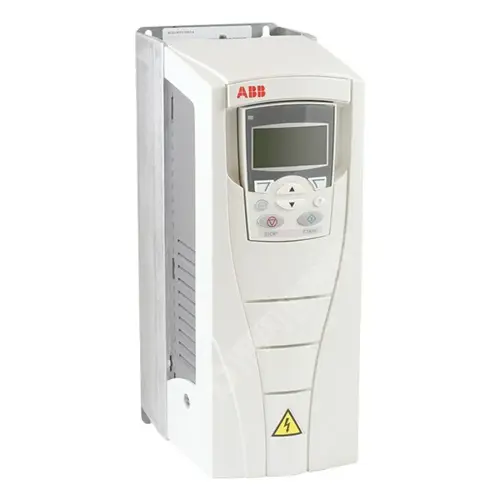

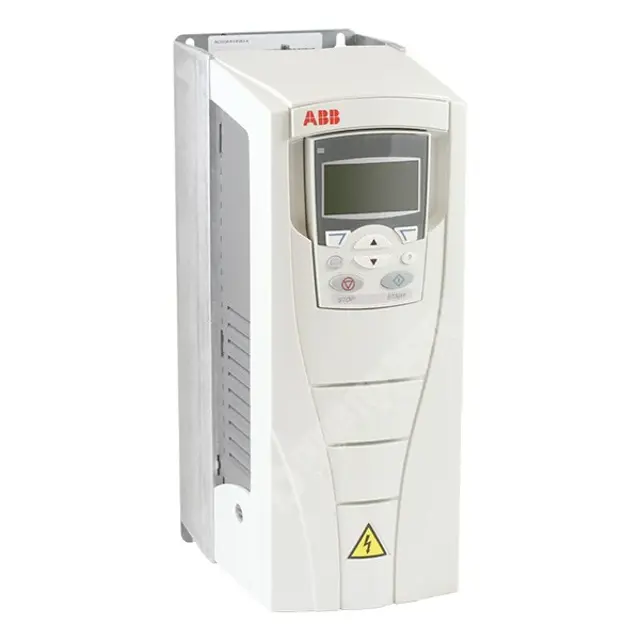

ABB Adjustable Speed AC Drive ACS550-01-022A-6
Create an account to install this asset package.
Maintenance Plans for ABB Adjustable Speed AC Drive Model ACS550-01-022A-6
Integrate maintenance plans directly into your work orders in MaintainX.
6 Yearly Main Cooling Fan Replacement
Warning: Only trained personnel should perform this procedure.
Fan showing signs of failure (increasing noise, rising heatsink temperature)?
If no signs of failure, skip the replacement procedure.
Power removed from the drive?
Drive cover removed?
Select the frame size
Fan cover removed according to frame size?
Fan cable disconnected?
Fan reinstalled in reverse order?
6 Monthly Heatsink Maintenance
Warning: Always remove power from the drive before starting the maintenance.
Is the environment dusty?
If the environment is dusty, increase the frequency of heatsink checks.
Heatsink fins free of dust?
If heatsink fins are not free of dust, follow the cleaning procedure.
Heatsink cleaning procedure
Sign off on the heatsink maintenance
3 Yearly Internal Enclosure Cooling Fan Replacemnt
Warning: Ensure power is removed from the drive before starting the procedure
Power removed from the drive?
Front cover removed?
Barbed retaining clips released?
Fan housing removed from the drive?
Fan cable disconnected?
Fan installed with air flow up?
Fan wire harness toward the front?
Notched housing barb located in the right-rear corner?
Parts for ABB Adjustable Speed AC Drive ACS550-01-022A-6
Access the parts list for your equipment in MaintainX.
Fuse
JUS-40
Flange Mounting Kit
FMK-A-R3
Flange Mounting Kit
FMK-B-R3
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
Fuse
JUS-40
Flange Mounting Kit
FMK-A-R3
Flange Mounting Kit
FMK-B-R3
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
Fuse
JUS-40
Flange Mounting Kit
FMK-A-R3
Flange Mounting Kit
FMK-B-R3
Ring Lug
YAV6C-L2
Ring Lug
CCL-6-38
