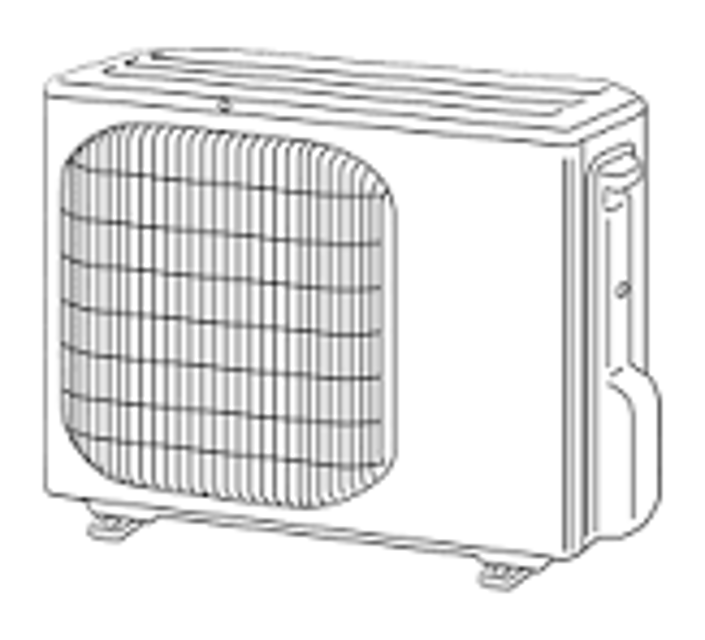

Mitsubishi Split-Type Air Conditioner MUZ-GC35NA
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner MUZ-GC35NA
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner MUZ-GC35NA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model MUZ-GC35NA
Integrate maintenance plans directly into your work orders in MaintainX.
Thermistors Diassemble
Remove the cabinet and panels
Pull out the discharge temperature thermistor from its holder
Pull out the defrost thermistor from its holder
Sign off on the thermistors disassemble
Cabinet and Panels Disassemble
Remove the screw fixing the service panel
Upload a photo of the removed service panel screw
Pull down the service panel and remove it
Upload a photo of the removed service panel
Disconnect the power supply and indoor/outdoor connecting wire
Remove the screws fixing the top panel
Upload a photo of the removed top panel screws
Remove the top panel
Upload a photo of the removed top panel
Inverter Assembly and Inverter P.C. Board Disassemble
Remove the cabinet and panels
Disconnect the earth wires
Disconnect the lead wire to the reactor
Disconnect the following connectors; CN641, CN721, CN771, CN724
Disconnect the compressor connector (CN61)
Remove the screws fixing the relay panel
Remove the inverter assembly
Remove the inverter P.C. board from the inverter assembly
Outdoor Fan Motor Disassemble
Remove the cabinet and panels
Disconnect the connectors for outdoor fan motor
Remove the propeller nut
Remove the propeller
Remove the screws fixing the fan motor
Remove the fan motor
Compressor and 4-Way Valve Disassemble
Remove the cabinet and panels
Remove the inverter assembly
Recover gas from the refrigerant circuit until the pressure gauge shows 0 MPa
Detach the welded part of the suction and the discharge pipe connected with compressor
Remove the nuts of compressor legs
Remove the compressor
Detach the welded part of pipes connected with 4-way valve
Upload a photo of the detached pipes connected with 4-way valve
Sign off on the compressor and 4-way valve disassemble
Parts for Mitsubishi Split-Type Air Conditioner MUZ-GC35NA
Access the parts list for your equipment in MaintainX.
Compressor
KNB073FGDH
Fan Motor
RA6V21-BD
Compressor
KNB073FGDH
Fan Motor
RA6V21-BD
Compressor
KNB073FGDH
Fan Motor
RA6V21-BD
