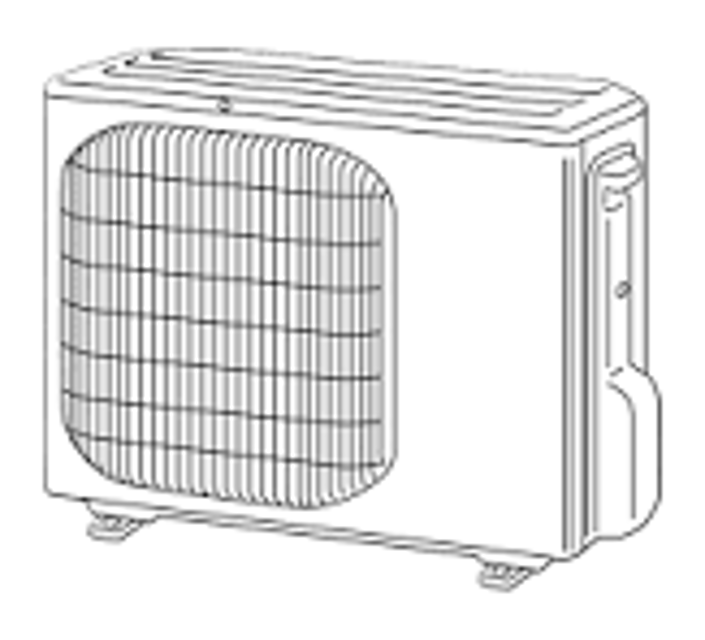

Mitsubishi Split-Type Air Conditioner MUZ-GC60NA-C2
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Split-Type Air Conditioner MUZ-GC60NA-C2
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Split-Type Air Conditioner MUZ-GC60NA-C2
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Split-Type Air Conditioner Model MUZ-GC60NA-C2
Integrate maintenance plans directly into your work orders in MaintainX.
Cabinet Disassemble
Remove the screws of the service panel
Remove the screws of the top panel
Remove the screw of the valve cover
Remove the service panel
Remove the top panel
Remove the valve cover
Disconnect the power supply and indoor/outdoor connecting wire
Remove the screws of the cabinet
Remove the cabinet
Thermistors Disassemble
Remove the top panel, cabinet and service panel
Remove the back panel
Disconnect CN661 (Discharge temperature thermistor, defrost thermistor and outdoor heat exchanger temperature thermistor) from the Electronic control P.C. board
Disconnect CN663 (Ambient temperature thermistor) from the Electronic control P.C. board
Pull out the defrost thermistor from its holder
Upload a photo of the defrost thermistor removed from its holder
Pull out the discharge temperature thermistor from its holder
Upload a photo of the discharge temperature thermistor removed from its holder
Pull out the outdoor heat exchanger temperature thermistor from its holder
Inverter Assembly, Inverter P.C. Board and Power Board Disassemble
Remove the top panel, cabinet and service panel
Remove the back panel
Disconnect the following connectors on the Electronic control P.C. board
Disconnect the connector on the Noise filter P.C. board, CN912 (R.V. coil)
Remove the compressor connector
Remove the screws fixing the relay panel
Remove the inverter assembly
Disconnect all connectors and lead wires on the electronic control P.C. board
Remove the electronic control P.C. board from the inverter assembly
Reactor Disassemble
Remove the top panel, cabinet, service panel and the back panel
Upload a photo of the removed panels
Disconnect the reactor lead wire
Upload a photo of the disconnected lead wire
Remove the screws of the reactor
Upload a photo of the removed screws
Remove the reactor
Upload a photo of the removed reactor
Sign off on the reactor disassemble
Outdoor Fan Disassemble
Remove the top panel, cabinet and service panel
Remove the back panel
Disconnect the following connectors; <Electronic control P.C. board> CN931 and CN932 (Fan motor)
Remove the propeller
Remove the screws fixing the fan motor
Remove the fan motor
Sign off on the fan disassembly
Parts for Mitsubishi Split-Type Air Conditioner MUZ-GC60NA-C2
Access the parts list for your equipment in MaintainX.
Fan Motor
RC0J60-AA
Compressor
SNB130FGBH
Fan Motor
RC0J60-AA
Compressor
SNB130FGBH
Fan Motor
RC0J60-AA
Compressor
SNB130FGBH
