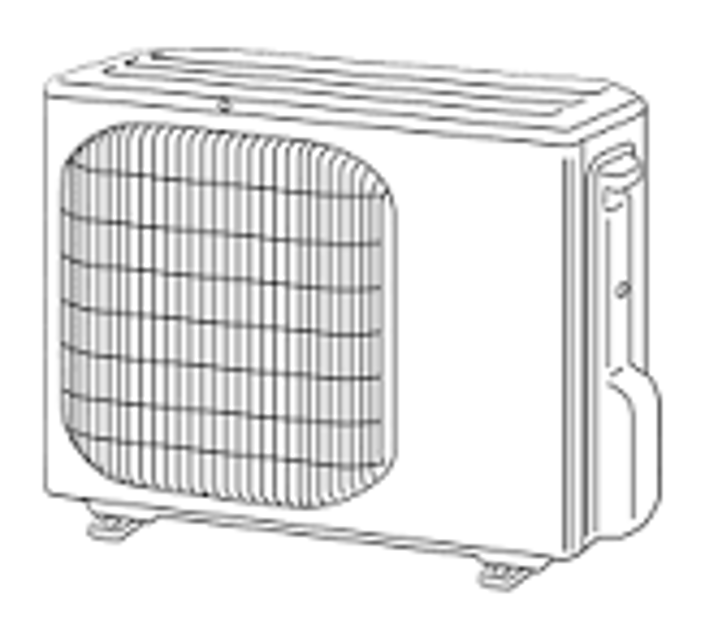

Mitsubishi Split-Type Air Conditioner MUZ-GC60NA

Remove the top panel, cabinet and service panel

Disconnect the following connectors; <Electronic control P.C. board> CN931 and CN932 (Fan motor)

Remove the screws fixing the fan motor

Remove the top panel, cabinet and service panel

Disconnect the following connectors on the Electronic control P.C. board

Disconnect the connector on the Noise filter P.C. board, CN912 (R.V. coil)

Remove the compressor connector

Remove the screws fixing the relay panel

Disconnect all connectors and lead wires on the electronic control P.C. board

Remove the electronic control P.C. board from the inverter assembly

Remove the screws of the service panel

Remove the screws of the top panel

Remove the screw of the valve cover

Disconnect the power supply and indoor/outdoor connecting wire

Remove the screws of the cabinet

Remove the top panel, cabinet and service panel

Disconnect the following connectors; <Electronic control P.C. board> CN661 (Discharge temperature thermistor, defrost thermistor and outdoor heat exchanger temperature thermistor)

Disconnect the following connectors; <Electronic control P.C. board> CN663 (Ambient temperature thermistor)

Pull out the defrost thermistor from its holder

Pull out the discharge temperature thermistor from its holder

Pull out the outdoor heat exchanger temperature thermistor from its holder

Pull out the ambient temperature thermistor from its holder

(1) Remove the top panel, cabinet, service panel and the back panel. (Refer to 1.)

(2) Disconnect the reactor lead wire.

(3) Remove the screws of the reactor, and remove the reactor.(Photo 5,12);
