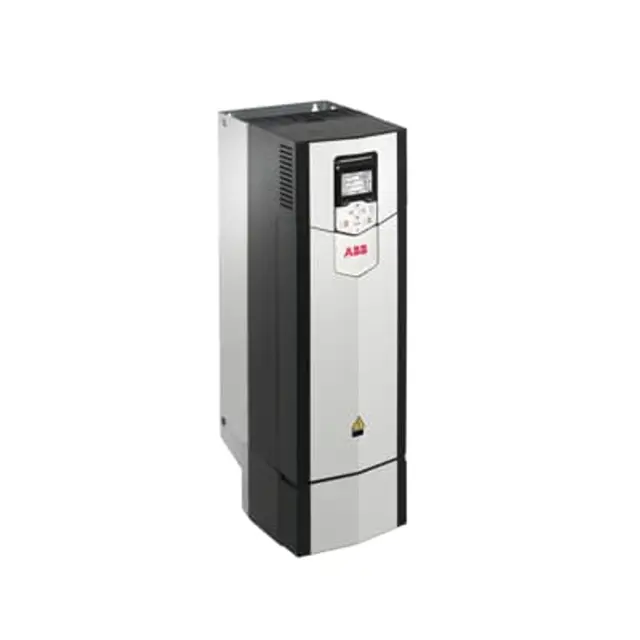

ABB AC Drive ACS880-01-302A-5
Need answers fast?
Explore the manual using AI.
The ABB AC Drive ACS880-01-302A-5 is a high-performance industrial drive designed for various applications. Known for its reliability and efficiency, this model enhances motor control while providing advanced features for optimal performance and energy savings. Ideal for demanding environments, it ensures seamless integration and operation.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for ABB AC Drive ACS880-01-302A-5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
ABB AC Drive ACS880-01-302A-5
Create an account to install this asset package.
Maintenance Plans for ABB AC Drive Model ACS880-01-302A-5
Integrate maintenance plans directly into your work orders in MaintainX.
9 Years Main Cooling Fan Replacement
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
Undone the two mounting screws of the fan mounting plate
Turned the mounting plate downwards
Disconnected the fan power supply wires
Removed the fan mounting plate
Removed the fan by undoing the two mounting screws
Installed the new fan in reverse order. Made sure that the fan blows upwards
Reset the counter (if used) in group 5 in the primary control program
Sign off on the fan replacement
Drive Exterior Cleaning
WARNING! Obey the safety instructions of the drive. If you ignore them, injury or death, or damage to the equipment can occur. If you are not a qualified electrical professional, do not do installation, commissioning or maintenance work.
Drive stopped and electrical safety precautions followed
Select cleaning tools used
Select cleaning solution used
Drive exterior cleaned
Sign off on the drive exterior cleaning
9 Years Second Auxiliary Cooling Fan Replacement
Stop the drive and do the steps in section Electrical safety precautions before you start the work.
IP55 front cover removed
Power supply wire of the auxiliary cooling fan disconnected
Fan power supply wires unplugged
Retaining clips released
Fan lifted off
Power supply wire unplugged from the branching plug
New fan installed with arrow pointing up
Front cover replaced
ZCU-12 Memory Unit Replacement
Warning: Do not remove or insert the memory unit when the control unit is powered.
Drive stopped and electrical safety precautions followed
Upload a photo of the memory unit before removal
Clip at the side of the memory pulled up
Upload a photo of the memory unit after removal
Memory unit taken off
Upload a photo of the new memory unit ready for installation
Memory unit installed in reverse order
Upload a photo of the installed memory unit
9 Years Second Auxiliary Cooling Fan Replacement
Warning: Stop the drive and follow the steps in section Electrical safety precautions (page 18) before you start the work.
Lower front cover removed from the cover
Fan power supply wires unplugged
Fan removed
New fan installed with arrow pointing up
Counter reset in group 5 in the primary control program
Sign off on the fan replacement
Parts for ABB AC Drive ACS880-01-302A-5
Access the parts list for your equipment in MaintainX.
Fuse
170M5011
UL Fuse
JJS-400
Circuit Breaker
T5 L 630 PR221DS-LS/I
Semiconductor Fuse
170M6309
du/dt Filter
FOCH0320-5X
Fuse
170M5011
UL Fuse
JJS-400
Circuit Breaker
T5 L 630 PR221DS-LS/I
Semiconductor Fuse
170M6309
du/dt Filter
FOCH0320-5X
Fuse
170M5011
UL Fuse
JJS-400
Circuit Breaker
T5 L 630 PR221DS-LS/I
Semiconductor Fuse
170M6309
du/dt Filter
FOCH0320-5X
