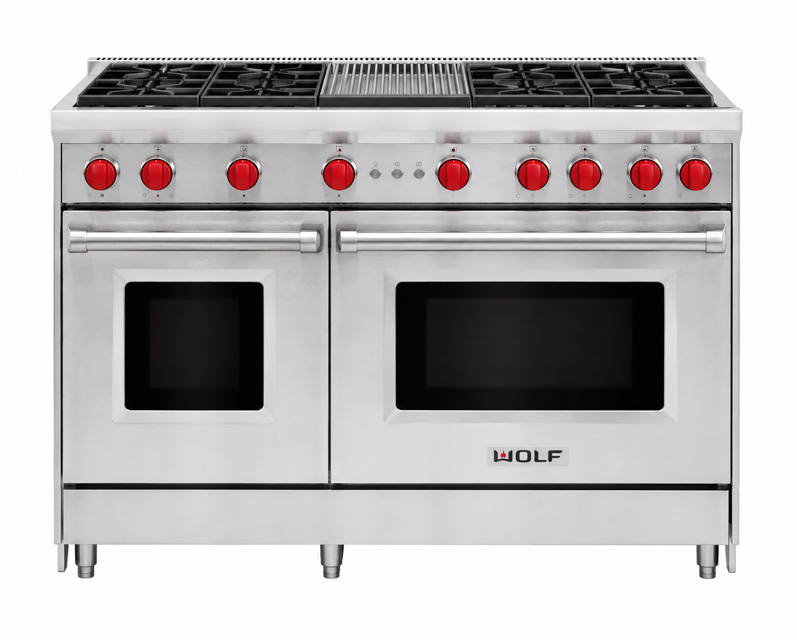

Wolf Gas Range GR486G

Wolf Gas Range GR486G

Create an account to install this asset package.

Maintenance Plans for Wolf Gas Range Model GR486G

Integrate maintenance plans directly into your work orders in MaintainX.

Griddle Cleaning

Check mark

Grease Removal

Check mark

Use a metal spatula to scrape grease into the grease collection tray.

Check mark

Wipe the surface with a paper towel to remove excess grease or oil after it has cooled.

Check mark

Grease Collection Tray Maintenance

Check mark

Clean the grease collection tray after each use to prevent fire hazards.

Check mark

Remove the drip tray by gently pulling it towards yourself.

Check mark

Clean the drip tray with soapy water and a clean cloth.

Run this procedureArrow right

Burner Grates Cleaning

Check mark

Preparation

Check mark

Gather necessary cleaning materials

Check mark

Cleaning Process

Check mark

Remove burner grates from the stove

Check mark

Inspect grates for any visible damage

Check mark

Soak grates in hot water and liquid detergent

Check mark

Scrub grates with a plastic pad or sponge

Check mark

Apply a paste of baking soda and water to stubborn stains

Check mark

Use mild abrasive cleaners sparingly on tough spots

Run this procedureArrow right

Burner Cap Cleaning

Check mark

Preparation

Check mark

Ensure the burner cap is cool before cleaning

Check mark

Remove the burner cap from the cooktop and place it on a flat surface near the sink

Check mark

Cleaning Process

Check mark

Wash the burner cap in warm water with liquid detergent or mild abrasive cleaners

Check mark

Check for and remove any food residues that may pit or craze the surface

Check mark

Post-Cleaning

Check mark

Ensure no food residues remain on the burner cap

Check mark

Dry the burner cap thoroughly before reattaching to the cooktop

Run this procedureArrow right

Burner Pan Cleaning

Check mark

Preparation

Check mark

Gather cleaning materials: clean cloth or sponge, mild detergent, protective polish, spray degreaser, white vinegar, and water.

Check mark

Cleaning Process

Check mark

Wipe the burner pan with warm water and mild detergent using a clean cloth or sponge.

Check mark

Rinse the burner pan thoroughly and dry immediately.

Check mark

Apply protective polish to the burner pan, always in the same direction.

Check mark

Degreasing

Check mark

Spray degreaser on a cloth and wipe the burner pan surface.

Check mark

Buff the surface dry immediately to avoid streaking.

Run this procedureArrow right

Leak Testing

Check mark

Preparation

Check mark

Ensure all gas valves are turned off before starting the test

Check mark

Gather necessary materials: brush, liquid detergent, and water

Check mark

Leak Testing Procedure

Check mark

Apply detergent solution to all gas connections using a brush

Check mark

Observe for bubbles around connections indicating a leak

Check mark

If bubbles appear, shut off the gas valve and adjust connections

Check mark

Recheck connections for leaks after adjustments

Check mark

Post-Test Cleanup

Run this procedureArrow right

Parts for Wolf Gas Range GR486G

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993
