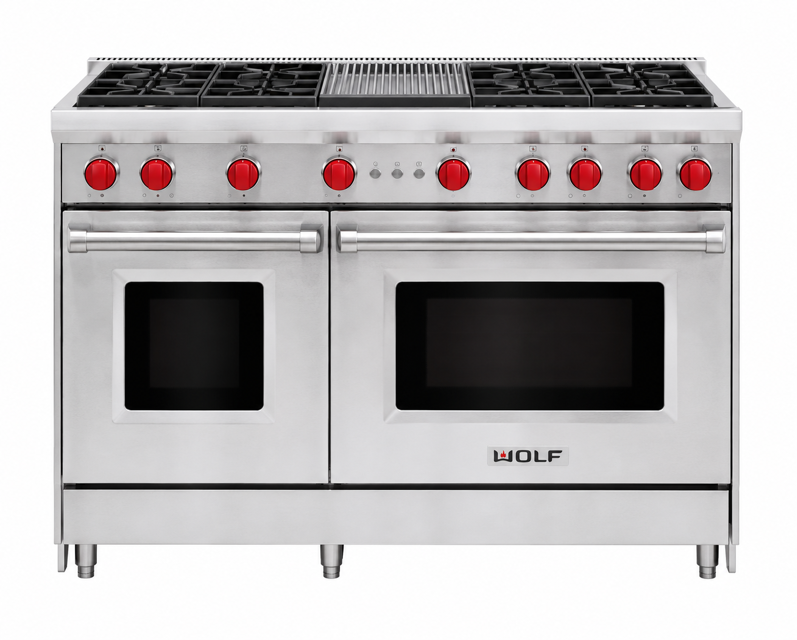

Wolf Gas Range GR484CG

Need answers fast?
Explore the manual using AI.

Wolf Gas Range GR484CG
Wolf Gas Range GR484CG

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Wolf Gas Range GR484CG

Wolf Gas Range GR484CG

Create an account to install this asset package.

Maintenance Plans for Wolf Gas Range Model GR484CG

Integrate maintenance plans directly into your work orders in MaintainX.

Grate Cleaning

Check mark

Preparation

Check mark

Ensure the grate is cool before handling

Check mark

Lift off the grate and set it in the sink

Check mark

Residue Loosening

Check mark

Pour very hot water over the cooked-on residue

Check mark

Cover with wet dish towels

Check mark

Pour more hot water over the towels

Check mark

Allow time for the hot, moist conditions to loosen the residue

Check mark

Cleaning and Finishing

Run this procedureArrow right

Burner Pan Cleaning

Check mark

Preparation

Check mark

Gather cleaning materials: clean cloth or sponge, warm water, mild detergent, spray degreaser, protective polish, white vinegar.

Check mark

Cleaning Process

Check mark

Remove any spills immediately to prevent pitting and staining.

Check mark

Wipe the surface with warm water and mild detergent using a clean cloth or sponge.

Check mark

Rinse the surface thoroughly and dry immediately.

Check mark

Apply protective polish in the same direction to maintain luster.

Check mark

Degreasing and Stain Removal

Check mark

Use spray degreaser to remove fingerprints and greasy spatters. Spray on a cloth and wipe the surface.

Run this procedureArrow right

Leak Testing

Check mark

Preparation

Check mark

Ensure gas valve is turned on

Check mark

Prepare liquid detergent solution

Check mark

Leak Detection

Check mark

Apply detergent solution to all gas connections using a brush

Check mark

Observe for bubbles around connections

Check mark

If bubbles appear, shut off the gas valve and adjust connections

Check mark

Recheck connections for leaks after adjustment

Check mark

Post-Testing Cleanup

Run this procedureArrow right

Burner Grates Cleaning

Check mark

Preparation

Check mark

Ensure the burner is turned off and cool before cleaning.

Check mark

Gather necessary cleaning materials

Check mark

Cleaning Process

Check mark

Clean grates with hot water and liquid detergent using a plastic pad or sponge.

Check mark

Apply a paste of baking soda and water to stubborn stains and scrub gently.

Check mark

Use mild abrasive cleaners sparingly if necessary.

Check mark

Post-Cleaning

Check mark

Rinse grates thoroughly with clean water.

Run this procedureArrow right

Burner Cap Cleaning

Check mark

Preparation

Check mark

Ensure the burner cap is cool before cleaning

Check mark

Remove the burner cap from the cooktop and place it on a flat surface near the sink

Check mark

Cleaning Process

Check mark

Wash the burner cap in warm water with liquid detergent or mild abrasive cleaners

Check mark

Check for and remove any food residues that may pit or craze the surface

Check mark

Post-Cleaning

Check mark

Ensure no food residues remain on the burner cap

Check mark

Dry the burner cap thoroughly before reinstallation

Run this procedureArrow right

Parts for Wolf Gas Range GR484CG

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993
