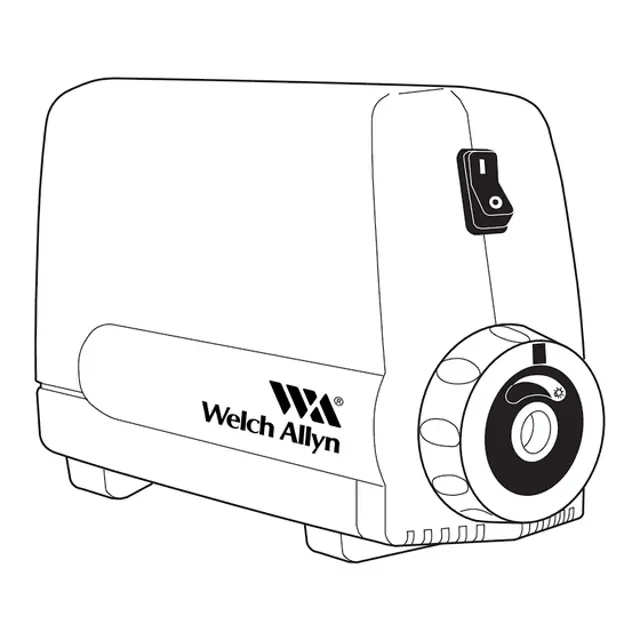

Welch Allyn Light Source 46106

Remove the power cord from the wall outlet

Remove the power cord from the Welch Allyn Light Source

Use a small screwdriver to remove the fuse holder above the power cord connector

Release the spring-loaded snap connections

NOTE: Lamp replacement period 300 Hours is given on page 15

CAUTION: Lamp may be hot. Allow the lamp to cool before replacing.

Turn unit off and unplug the power cord from both the wall outlet and the Welch Allyn Light Source.

Remove the lamp door from the bottom of the Welch Allyn Light Source by unscrewing the lamp access knob on the back of the lightbox.

Disconnect the lamp connector assembly and remove the lamp from the holding spring assembly.

Replace with Welch Allyn replacement lamp #09500 only. Do not touch the lamp itself, or the interior reflective surface of the lamp.

Remove any grease or fingerprints with a clean cotton swab moistened with alcohol. Do not leave any lint on the lamp.

Turn power off and disconnect the power cord from both the wall outlet and the Welch Allyn Light Source

Select cleaning/disinfecting solution used for external surfaces

Wipe external surfaces with the selected cleaning/disinfecting solution

Select cleaning/disinfecting solution used for power cord

Wipe power cord with the selected cleaning/disinfecting solution
