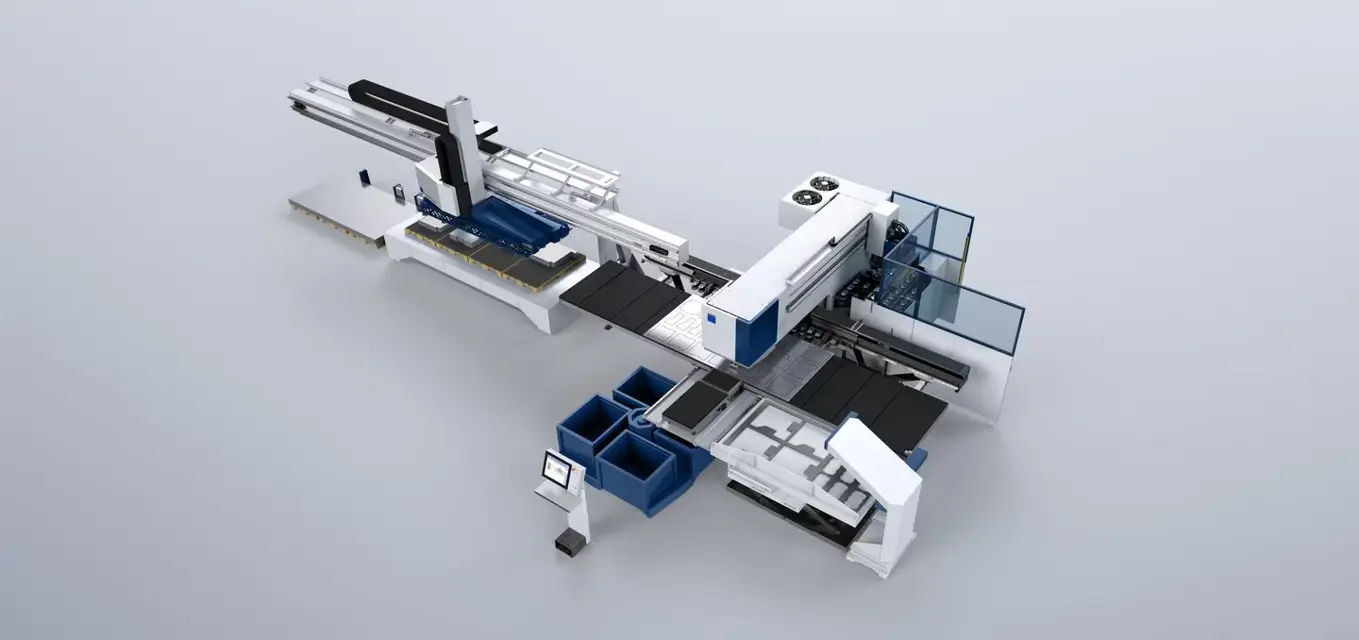

Trumpf Punching Machine TruPunch 5000

Warning: This procedure requires trained personnel with PPE!

Check filling volume of central lubrication on the SheetMaster and GripMaster

Is the filling volume down to 1/3?

If the filling volume is down to 1/3, refill with low-viscosity grease

Is the MAIN SWITCH locked and key pulled out?

Check the filling volume of the low-viscosity grease

Is the low-viscosity grease topped up if necessary?

- Clean and lubricate roller chain, chain wheels of the SortMaster Pallet

1. Shut down the machine properly, switch off the MAIN SWITCH, lock it and pull out the key

2. Clean the roller chains and chain wheels with a brush

3. Lubricate the roller chains and chain wheels using an oil can

- Lubricate flange bearing unit of the SortMaster Pallet

1. Shut down the machine properly, switch off the MAIN SWITCH, lock it and pull out the key

2. Lubricate the grease nipples using a grease gun;

- Clean and lubricate roller chain, chain wheels of the Double cart with guide rails

1. Shut down the machine properly, switch off the MAIN SWITCH, lock it and pull out the key

2. Remove the protective covers from the upper carriage frame

3. Clean the roller chains and chain wheels with a brush

4. Lubricate the roller chains and chain wheels using an oil can

5. Install protective covers on the upper carriage frame;

Warning: This procedure requires trained personnel with PPE!

Machine shut down properly and MAIN SWITCH locked?

Sign off on the suction cups replacement

- Lubricate shifting unit (ToolMaster (70))

2. Shut down the machine properly, switch off the MAIN SWITCH, lock it and pull out the key

3. Lubricate four grease nipples using a grease gun;
