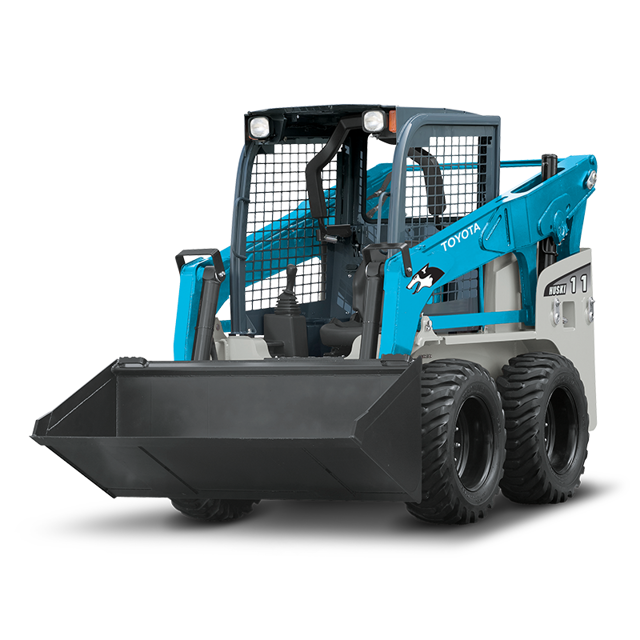

Toyota Steer Loader 4SDK3

Create an account to install this asset package.

Maintenance Plans for Toyota Steer Loader Model 4SDK3

Integrate maintenance plans directly into your work orders in MaintainX.

Steer Loader Cleaning

Warning: This cleaning procedure requires trained personnel with PPE!

Is the vehicle parked on a hard, dry surface?

Is the surface of the hydraulic cylinder piston rods dry?

Is the fuel tank drain plug loosened and water drained out of the fuel system?

Caution: When the cold season passes and the weather begins to warm up, bring the oil and fuel back up to standard specifications.

Sign off on the steer loader cleaning

Run this procedure

Tires Replacement

1. Preparations:

Prepare tools and the jack, and securely block the wheels.

2. Front Wheel:

(1) Dump the load, move the vehicle to a level area, and lower the bucket until it touches the ground.

(2) Slightly loosen the hub nuts.

(3) Tilt the bucket forward, and with the tires off the ground, put blocks under the frame.

(4) Remove the hub nuts and the wheel.

(5) To re-install the wheel, reverse the removal procedure. Tighten the hub nuts evenly in the order shown in the illustration.

(6) After installing the wheel, check the tire pressure and adjust it if necessary.

Run this procedure

500 Hourly / 3 Monthly Steer Loader Maintenance

- Coolant Replacement (excluding LLC)

- Hydraulic Oil replacement

- HST Pump and Motor charge pressure measurement, correction, adjustment

Reduction Device Unit inspection:

- Chain bushing engaged portion deformation

- Sprocket deformation, damage

- Hydraulic oil tank and strainer cleaning;

Run this procedure

Initial 50 Hours HST Oil Filter Replacement

Warning: This procedure requires trained personnel with PPE!

Release the rear grille.

Was the rear grille released successfully?

Use a filter wrench to remove the oil filter.

Was the oil filter removed successfully?

Caution: Be careful not to let dust or dirt into the circuit.

Install the new oil filter.

Was the new oil filter installed successfully?

Note: Clean the surface of installation. Apply new hydraulic oil to the filter gasket. Rotate approximately 2/3 rotation after the oil filter’s gasket comes into contact with the filter head.

Run this procedure

Instrument Inspection

Switch ON the ignition switch

Each warning lamp goes on

Start the engine

Each warning lamp goes off

Hour meter reading

Hour meter is operating normally

Sign off on the instrument inspection

Run this procedure
