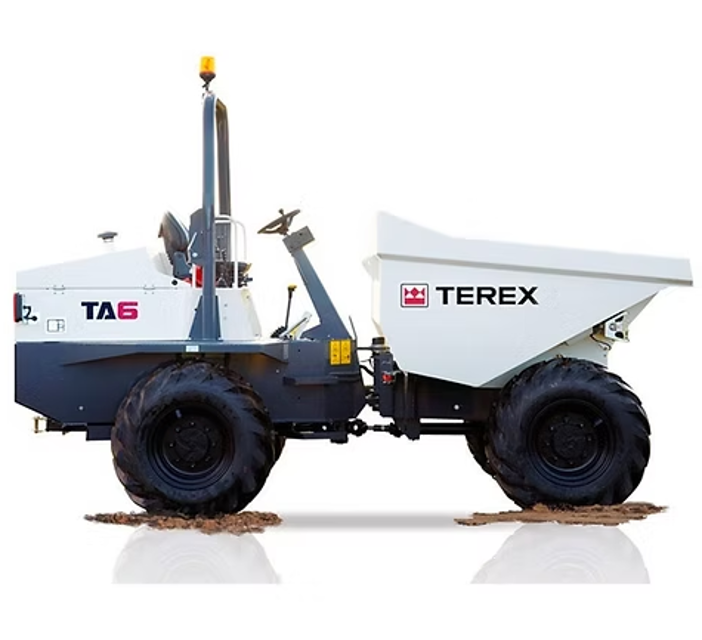

Terex Site Dumper TA6

Disconnect Negative Battery Lead Connection First

• Always wear protective glasses when working on battery.

• If battery leads are removed, clean battery terminals and connections. When reassembled smear terminals with grease.

• Remove start key and all electrical loads before disconnecting. Always disconnect Negative (-) battery lead before disconnecting the Positive (+) battery lead.

• Remove start key and all electrical loads before reconnecting. Always connect Positive (+) battery lead first when reconnecting battery.

• Never allow metal objects to touch both battery terminals at same time or allow metal objects to touch Positive (+) terminal and frame.

• When charging the battery hydrogen gas is produced. Ensure the area is well ventilated to prevent the risk of explosion from a build up of hydrogen.

• Do not smoke, weld, cut, grind etc. in vicinity of a battery being charged.

Check the filter blockage indicator. Is it showing RED?

Clean the surrounding area of the air cleaner

Loosen clamps holding end cover to air cleaner body

Pull the Primary and Secondary air filter elements from the air cleaner body

Renew, or clean the element. Secondary air cleaner must not be cleaned - it must be renewed when necessary

Thoroughly clean air cleaner body and end cover

Reassemble by reversing the above procedures

Steering Ram Pins Check for wear and retention

Steering Ram and Hoses Check for leaks

Skip Pivot Pins Check for wear and retention

Instruction Manual Present and Legible

Seat Belt Working and Undamaged

Seat Inhibitor Switch Check for Correct Function

Air Cleaner Clear and unobstructed

Warning: Avoid spraying electrical equipment with pressure washers

Oil, fuel and radiator filler necks cleaned

Used water or a pressure washer for cleaning

Avoided spraying electrical equipment with a pressure washer

Avoided direct jets into the engine air intake

Sign off on the dumper cleaning

Before carrying out any service or maintenance work ensure that the following precautions have been taken.

• Place the machine on firm level ground.

• Stop engine and chock the wheels.

• Remove Start key to prevent accidental starting.

• Place a warning tag on the machine to prevent accidental start up.

• Only jack or raise the dumper using the correct equipment.

Always use Axle Stands or other acceptable rigid support of ample capacity to support the dumper when raised clear of the floor.

• Refer to the Service Schedule on Page 9 - 26

• When checking fluid levels the machine must be placed on a firm, level surface, in a well ventilated position away from naked flames, grinding sparks etc.
