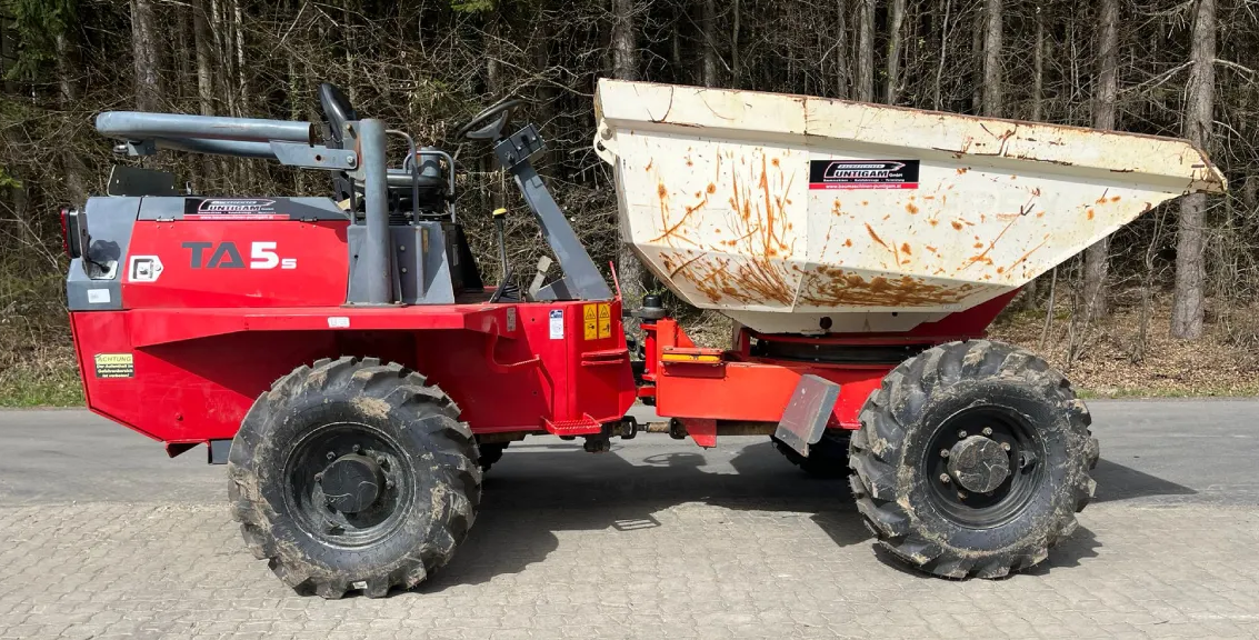

Terex Site Dumper TA5

• Clean the dumper thoroughly, this will make it easier to find oil leaks and loose fittings etc.

• Take care to clean the oil, fuel and radiator filler necks.

• Drain plugs should also be cleaned.

NOTICE: Avoid Spraying Electrical Equipment with Pressure Washers

• Using water or a pressure washer to wash down the exterior of the dumper with or without detergent is generally all that is required.Do not spray electrical equipment with a pressure washer or direct jets into the engine air intake.

• When cleaning the dumper it is preferable to use a biodegradable cleaner. Do not use solvents or like products which can damage rubber and plastics.;

Before carrying out any service or maintenance work ensure that the following precautions have been taken.

• Place the machine on firm level ground.

• Stop engine and chock the wheels.

• Remove Start key to prevent accidental starting.

• Place a warning tag on the machine to prevent accidental start up.

• Only jack or raise the dumper using the correct equipment.

Always use Axle Stands or other acceptable rigid support of ample capacity to support the dumper when raised clear of the floor.

• Refer to the Service Schedule on Page 9 - 26

• When checking fluid levels the machine must be placed on a firm, level surface, in a well ventilated position away from naked flames, grinding sparks etc.

Steering Ram Pins Check for wear and retention

Steering Ram and Hoses Check for leaks

Skip Pivot Pins Check for wear and retention

Instruction Manual Present and Legible

Seat Belt Working and Undamaged

Seat Inhibitor Switch Check for Correct Function

Air Cleaner Clear and unobstructed

Warning: Always wear protective glasses when working on battery.

Negative Battery Lead Connection disconnected first

Battery terminals and connections cleaned

Start key and all electrical loads removed before disconnecting

Positive (+) battery lead connected first when reconnecting battery

Metal objects not touching both battery terminals at same time or Positive (+) terminal and frame

Area well ventilated during battery charging

No smoking, welding, cutting, grinding etc. in vicinity of a battery being charged

The air cleaner (A) is located in the engine compartment.

Check the filter blockage indicator (B). If the indicator is showing RED, the air cleaner requires servicing.

• To service air cleaner first clean its surrounding area and then loosen clamps (E) holding end cover (C) to air cleaner body (D).

• Pull the Primary (B) and Secondary (A) air filter elements from the air cleaner body (D).

• Renew, or clean the element (B). Secondary air cleaner (A) must not be cleaned - it must be renewed when necessary.

• Thoroughly clean air cleaner body (D) and end cover (C).

Reassemble by reversing the above procedures.
