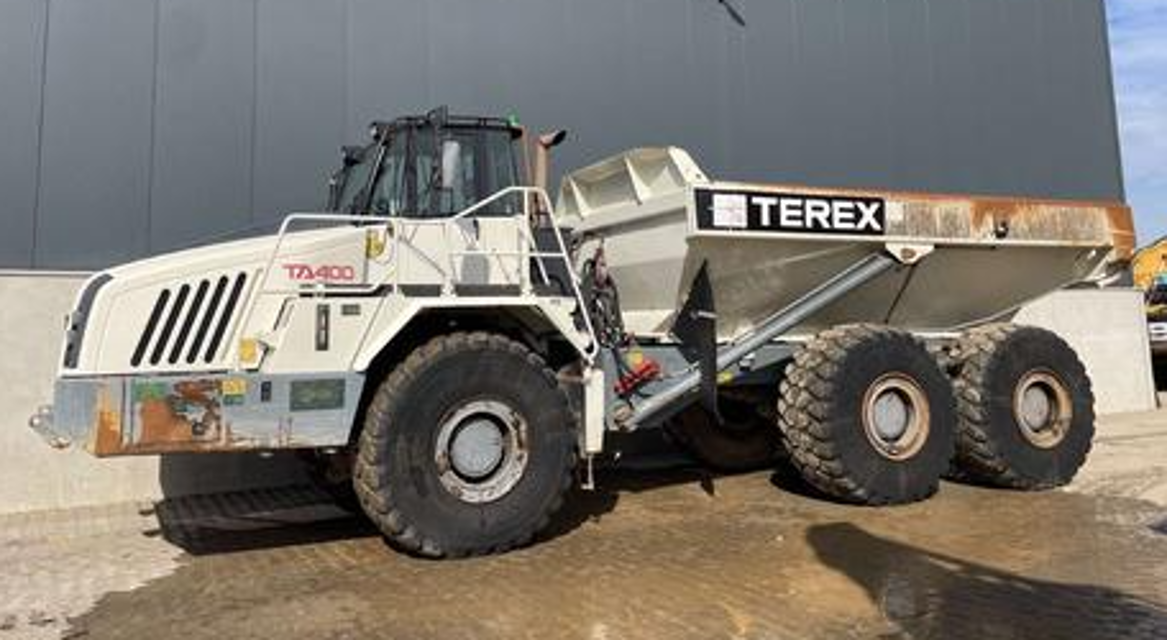

Terex Site Dumper TA400

Centrifugal Oil Filter Maintenance

Replace seat belts if required or at least once every three years

Inspect wiper blades and replace if damaged

Re-torque wheel rim nuts to 600 Nm after first 10 hours of operation

Torque should be applied in three stages. Nuts are to be torqued crosswise (opposing pairs). Check the torque every 50 hours (weekly) thereafter.

Steam clean the engine prior to performing any repair or service work on it, if heavily contaminated due to prevailing site conditions

Electrical and electronic connections, the Engine ECM and harness connections should be protected or not directly steam cleaned when on or removed from the engine.

The engine and its components that are scheduled to be checked, serviced or replaced must be cleaned in accordance with the manufacturer's recommendations.

Primary Fuel Filter/Water Separator Renew

Drive shaft Bearings Check oil level. Add if low

Brake Coolant Tank - Replace breather.

Parking Brake - Check pads and disc for wear. Adjust or replace if required. Test for proper function.

Thickness of pad friction material should never be allowed to wear below 3 mm (0.12 in).

Differentials Drain oil and refill with new oil

Wheel Planetaries Drain oil and refill with new oil

OCDB Tank Drain oil and refill with new oil

Axles - Drain lubricant and refill to level plugs.

NOTICE: When refilling the centre axle, ensure that the 3rd differential unit is primed with 1 litre (1.75 UK pints) of oil before filling the drive head.;

Drain lubricant and refill to level plug

NOTICE: When refilling the centre axle ensure that 3rd differential unit is primed with 1 litre (1.75 UK pints) of oil before filling drive head

Drain lubricant and refill to level plug

Clean filter housing and install new element at 100 hours of operation, or when indicated, whichever occurs first

NOTICE: A 6 µm filter is used to flush the system. This is replaced with a 12 µm filter for normal use. See vehicle Parts Book for filter part numbers
