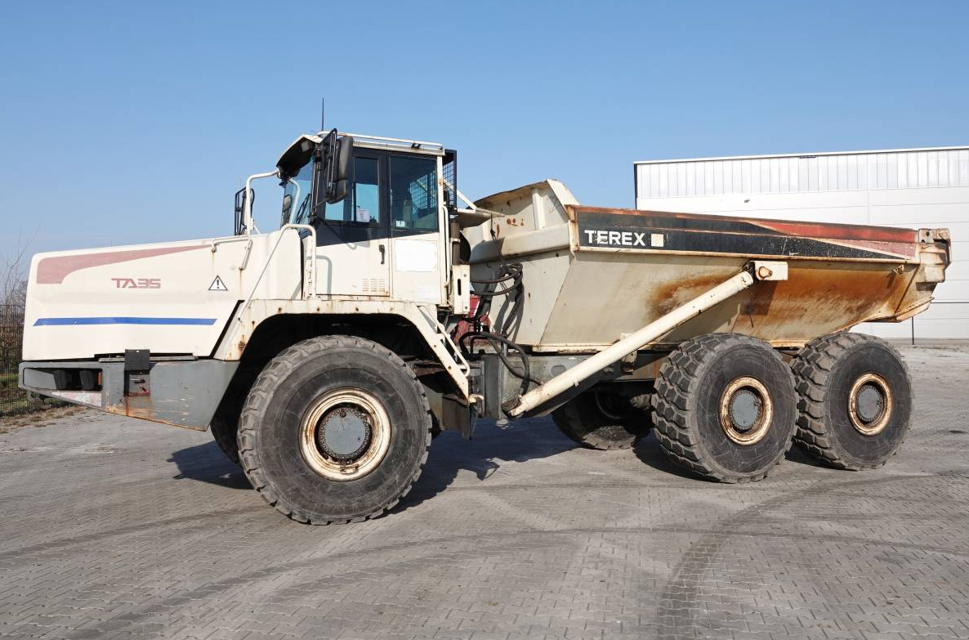

Terex Site Dumper TA35

Transmission - Drain oil, replace remote mounted filters, clean internal filter and finger magnet. Refill transmission.

Differentials - Drain lubricant and refill to level plug.

Note: When refilling centre axle ensure that 3rd differential unit is primed with 1 litre (1.75 UK pints) of oil before filling drive head.

Planetaries - Drain lubricant and refill to level plug.;

Radiator and Cooling System drained, flushed and refilled

Drivelines (Low Maintenance) checked for leaks and damage

Articulation Pivot Nut torque checked

Fuel Cooler stripped, cleaned and inspected

Charge Air Cooler stripped, cleaned and inspected

Low Maintenance drivelines visually checked for leaking or damaged seals

Coolant Inhibitor - Check inhibitor concentration.

Water Pump - Inspect drain hole. Clean if required

Engine Mounting Bolts - Check torque.

Transmission Mounting Bolts - Check torque.

Engine Crankcase Pressure - Check and record.;

Engine Air Cleaner - Replace element

Alternator - Check terminals and wiring.

Transmission - Drain oil and refill.

Fuel Tank - Replace cap filter/cartridge.

Cab Ventilation Filter - Replace

Wheel Planetaries (TA35) - Drain oil and refill.

Differentials (TA35) - Drain oil and refill.

Driveshaft Bearings - Check oil level. Add if low.

Seat Belts - Inspect for damage and replace if required.

Note: Replace seat belts at least once every three years, regardless of appearance.

Windscreen Wipers and Washers - Inspect wiper blades and replace if damaged. Top up washer reservoir.

Wheel Rim Nuts (TA40) - After first 10 hours of operation re-torque nuts to 540 Nm (400 lb ft). Check torque every 50 hours (weekly) thereafter.

Wheel Rim Nuts (TA35) - After first 10 hours of operation re-torque nuts to 730 Nm (540 lb ft). Check torque every 50 hours (weekly) thereafter.;
