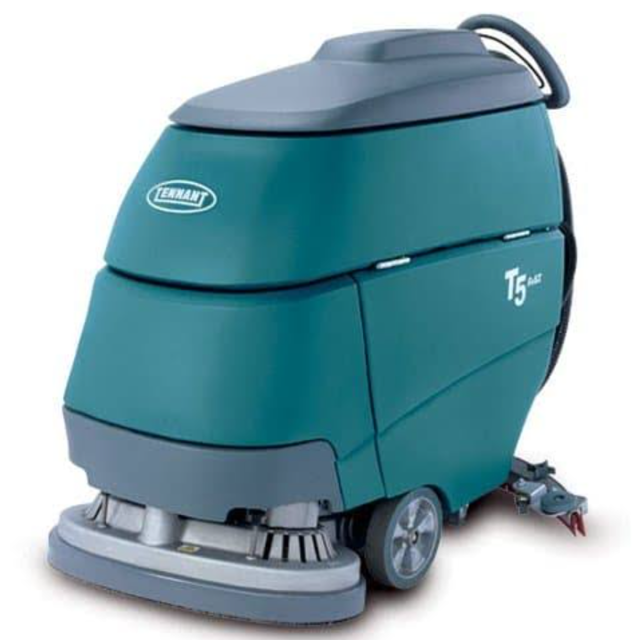

Tennant Cleaning Equipment T5

Replace carbon brushes in vacuum fan motor

Replace carbon brushes in disk brush motors

Replace carbon brushes in propelling motor

Check that all replaced parts are functioning correctly

Rinse and clean out the recovery tank

Remove and clean the recovery tank float shut-off screen

Remove and empty the debris tray

Ensure machine is on a level surface, turned off, key removed, and parking brake set (if equipped)

Check the belt tension on the two brush motors

Tighten the belt if it twists beyond 90 degrees at midpoint

Inspect the recovery tank cover seal

Clean the recovery tank cover seal

Replace the recovery tank cover seal if damaged

Park the machine on a level surface, lower scrub head and remove the key. Set parking brake, if equipped.

Remove front shroud to access cartridge. The cartridge is located behind the right side brush motor.

Unfasten strap around cartridge and remove cartridge from holder.

Disconnect the two hose connectors from cartridge by pressing the gray collars inward and pulling the connectors outward.

Fill in the installation date on the new cartridge label.

Reconnect the two hoses to new cartridge and re-strap cartridge to holder. Make sure the hose connectors are fully inserted into new cartridge.

Check if blades are worn on all edges

Rotate blades end-for-end or top-to-bottom if not all edges are worn

Replace blades if all edges are worn
