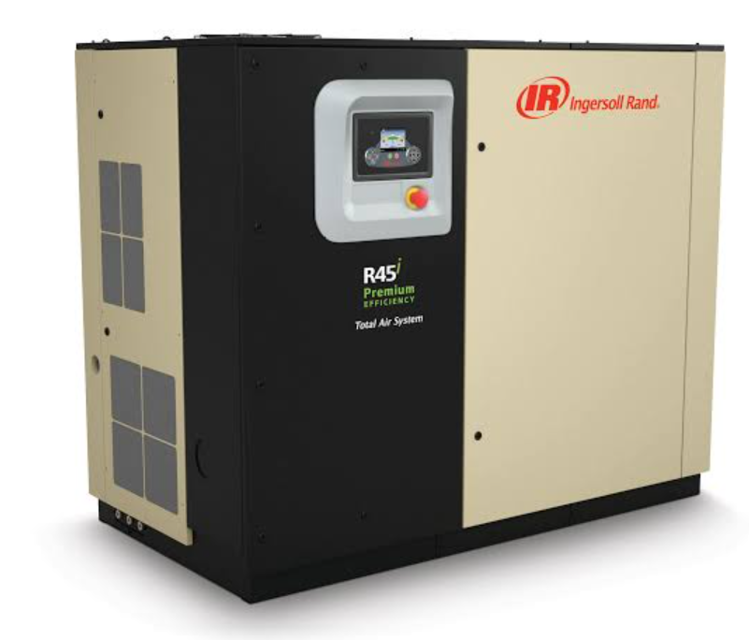

Ingersoll Rand Compressor RS55I

Check condensate drain operation

Check controller for service indicators

Check package pre-filters for blockage

Ensure the compressor is electrically isolated for at least 15 minutes before commencing any maintenance work.

Remove the panels from the compressor.

Clean the motor cowl and ventilation slots

Remove dust from the surface of the motor cowl using a clean dry cloth.

Ensure all ventilation slots are free of obstructions.

Isolate the compressor from the system

Ensure that the main power disconnect switch is locked off and tagged

NOTICE: Use proper certified lifting equipment for any required lifting of air compressor parts or tools

Determine the appropriate cleaning method for cooler cores

Visually check the outside of the cooler cores

Choose cleaning method based on dirt type

Cleaning for loose dirt, dust, and light foreign material

Loosen filter with the correct tool

Remove the filter from the housing

Place the old filter in a sealed bag

Dispose of the sealed bag in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement filter from its protective package

Apply a small amount of lubricant to the filter seal

Ensure the compressor is electrically isolated for at least 15 minutes before commencing any maintenance work.

Isolate the compressor from the system and fully discharge the compressed air within the compressor.

Disconnect cable plug and tubing. Then remove Condensate Drain Valve assembly from base.

Slowly remove the plug from the strainer with a suitable tool, ensuring pressure has been completely released from valve.

Strainer and Filter Maintenance

Remove the stainless steel filter screen and clean it.

Remove any debris that may be in the strainer body before replacing the filter screen.

Replace plug and tighten with suitable tool.

Reinstall Condensate Drain Valve assembly, and reconnect cable plug and tubing.
