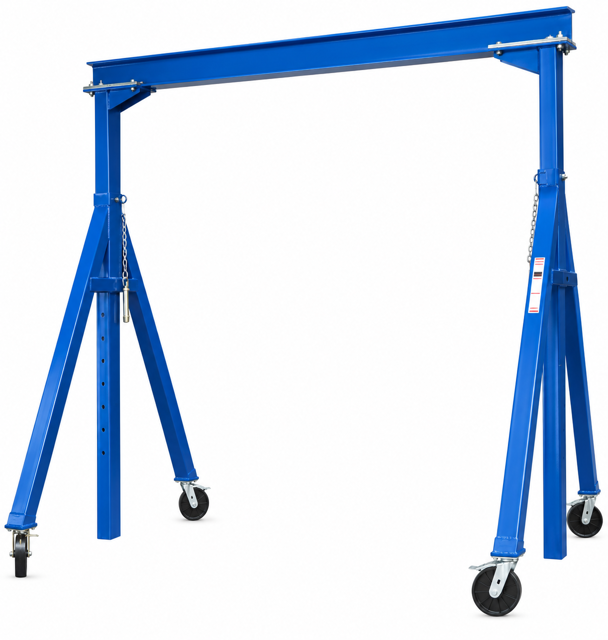

Vestil Gantry Crane AHS-2-15-9

Ensure you have the most current revision of ASME B30.17

Contact local occupational health and safety authority for applicable inspection requirements

Ensure inspections and repairs are performed by qualified persons

Inspect beam clamps and beam clamp fasteners

Use a torque wrench to tighten each bolt and nut to 50-52 ft∙lb

Examine all clamps for damage such as deformations and cracks

Ensure the I-beam flange is solidly clamped to the tops of the uprights

Ensure compliance with ASME B30.17 standard

Contact local occupational health and safety authority for applicable regulations

Verify that inspections and repairs are performed by qualified persons

Examine the I-Beam for bends, cracks, and other damage

Verify beam clamps and fasteners are properly secured

Inspect beam brackets for cracks, elongations, and warps

Check casters for cracks, warps, and ensure smooth rolling

Acquire the most recent revision of ASME B30.17 standard.

Contact local occupational health and safety authority for applicable inspection requirements.

Ensure inspections and repairs are performed by qualified persons.

Use only manufacturer approved replacement parts for repairs.

Lift a load equal to 125% of the crane's rated load (capacity).

Ensure the load is entirely supported by the crane.

Transport the load the full usable length of the I-beam.
