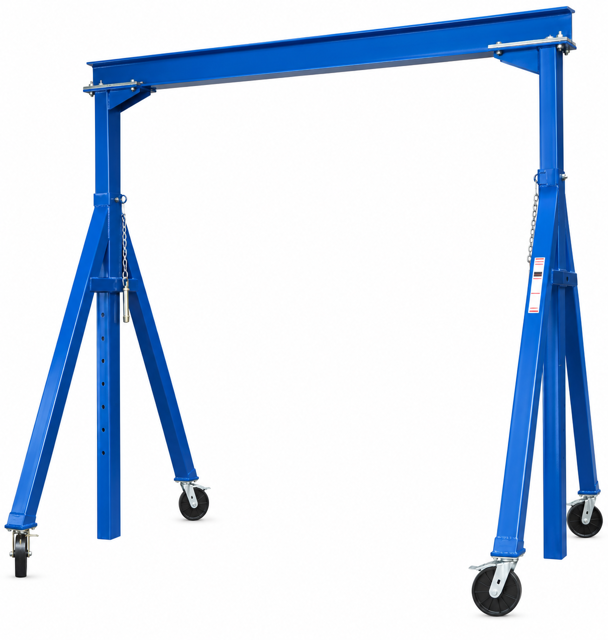

Vestil Gantry Crane AHS-4-15-9

Verify compliance with ASME B30.17 standard

Contact local occupational health and safety authority for applicable inspection requirements

Ensure inspections and repairs are performed by qualified persons

Examine I-Beam for bends, cracks, and other damage

Verify beam clamps and fasteners are properly secured

Inspect beam brackets for cracks, elongations, and warps

Check casters for cracks, warps, and ensure smooth rolling

Ensure all inspection procedures are included in the most current revision of ASME B30.17.

Acquire a copy of the most recent revision of ASME B30.17 standard.

Contact local occupational health and safety authority for applicable inspection requirements.

Inspection of Beam Clamps and Fasteners

Use a torque wrench to tighten each bolt and nut to 50-52 ft∙lb.

Examine all beam clamps for damage such as deformations and cracks.

Check that the I-beam flange is solidly clamped to the tops of the uprights.

Acquire the most recent revision of ASME B30.17 standard.

Contact local occupational health and safety authority for applicable inspection requirements.

Ensure inspections and repairs are performed by qualified persons.

Compare inspection results to the RECORD OF SATISFACTORY CONDITION.

Use only manufacturer approved replacement parts for repairs.

Lift a load equal to 125% of the crane's rated load (capacity).

Ensure the load is entirely supported by the crane.
