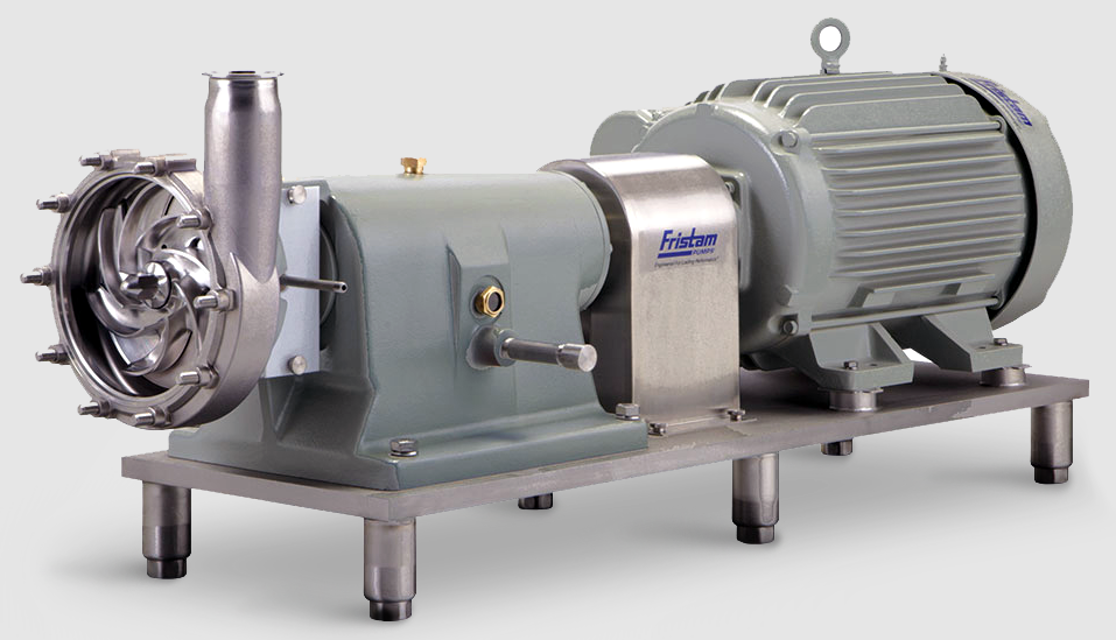

FRISTAM Pump FPHP 3552

FRISTAM Pump FPHP 3552

Create an account to install this asset package.

Maintenance Plans for FRISTAM Pump Model FPHP 3552

Integrate maintenance plans directly into your work orders in MaintainX.

Alignment Check

Check mark

Remove the wire ring from the coupling sleeve

Check mark

Check the parallel alignment

Check mark

Place a straight edge across the two coupling flanges

Check mark

Measure the maximum offset at various points around the periphery of the coupling without rotating the coupling

Check mark

Is the maximum offset within the acceptable range as per the 'Parallel' table?

Check mark

Realign the shafts if necessary

Check mark

Check the angular alignment

Check mark

Measure from the outside of one flange to the outside of the other ('Y') at intervals around the periphery of the coupling

Check mark

Determine the maximum and minimum dimensions without rotating the coupling

Run this procedureArrow right

Bearing Block Assembly

Check mark

Preparation

Check mark

Replace the pump shaft if necessary

Check mark

Heat the new thrust bearings to 230ºF

Check mark

Ensure the bearing heater does not exceed 250ºF

Check mark

Thrust Bearings Installation

Check mark

Slide thrust bearings onto the shaft in a back-to-back arrangement

Check mark

Apply a light film of oil on the shaft

Check mark

Bearing Lock Nut Installation

Check mark

Replace bearing lock nut washer and lock nut

Run this procedureArrow right

2000 Hourly / 3 Monthly Oil Change

Check mark

Bearing Block Oil Type Verification

Check mark

Verify oil type for #1 Bearing Block

Check mark

Verify oil type for 3VR Bearing Block

Check mark

Oil Level Check

Check mark

Check oil level is at the center of the sight glass for #1 Bearing Block

Check mark

Check oil level is at the center of the sight glass for 3VR Bearing Block

Check mark

Oil Change Procedure

Check mark

Change oil after initial 20 hours of operation for new installations

Check mark

Change oil every 2,000 hours or 3 months

Run this procedureArrow right

Bearing Block Disassembly

Check mark

Disassemble the pump head

Check mark

Drain the oil from the bearing block

Check mark

Unbolt the bearing block from the baseplate

Check mark

Slide the bearing block away from the motor and remove the rubber coupling sleeve

Check mark

Loosen the set screws on the coupling flange (40)

Check mark

Remove the coupling flange and coupling key from the pump shaft

Check mark

Remove the flush seal driver (26)

Check mark

Remove the front and rear bearing block caps

Check mark

Remove the snap ring (50)

Run this procedureArrow right

Pump Head Assembly

Check mark

Seal Assembly

Check mark

Ensure all new seal components are used from the replacement seal kit

Check mark

Slide the new flush seal drive ring (24) onto the pump shaft with the shorter tabs facing the flush seal driver (26)

Check mark

Align the tabs with the slots in the seal driver

Check mark

Slide the new flush seal spring (25) onto the pump shaft and position it against the flush seal drive ring

Check mark

Lubricate the new flush seal o-ring (23) with a food grade lubricant

Check mark

Place the o-ring inside the rotating flush seal ring (20) and slide the assembly onto the pump shaft

Check mark

Align the tabs in the flush seal drive ring with the slots in the flush seal ring

Check mark

Pump Housing Installation

Run this procedureArrow right
