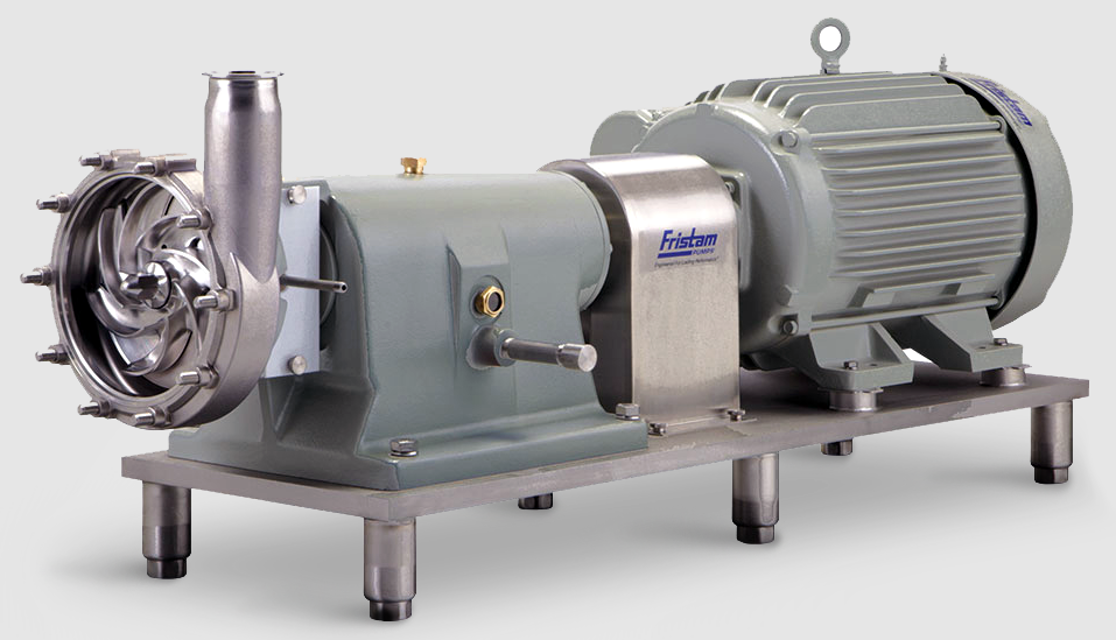

FRISTAM Pump FPH 3542

Remove the wire ring from the coupling sleeve and let it hang between the sleeve and one of the flanges.

Place a straight edge across the two coupling flanges.

Measure the maximum offset at various points around the periphery of the coupling without rotating the coupling.

Is the maximum offset within the acceptable range as per the 'Parallel' table?

Measure from the outside of one flange to the outside of the other ('Y') at intervals around the periphery of the coupling using a micrometer or caliper.

Determine the maximum and minimum dimensions without rotating the coupling.

Replace the pump shaft if necessary

Heat the new thrust bearings (33) on a bearing heater to 230ºF

Slide the heated thrust bearings onto the shaft in a back-to-back arrangement

Apply a light film of oil on the shaft to ease assembly

Replace bearing lock nut washer (34) and lock nut (35)

Tighten the bearing lock nut with the spanner wrench to the proper torque

Bearing Block Oil Type Verification

Verify oil type for #1 Bearing Block

Verify oil type for 3VR Bearing Block

Check oil level in #1 Bearing Block

Check oil level in 3VR Bearing Block

Change oil in 3VR Bearing Block

Drain the oil from the bearing block

Unbolt the bearing block from the baseplate

Slide the bearing block away from the motor and remove the rubber coupling sleeve

Loosen the set screws on the coupling flange (40)

Remove the coupling flange and coupling key from the pump shaft

Remove the flush seal driver (26)

Remove the front and rear bearing block caps

Check oil type for #1 Bearing Block

Check oil type for 3VR Bearing Block

Ensure oil level is at the center of the sight glass

Initial Installation Oil Change

Has the oil been changed after the initial 20 hours of operation?

Change oil every 2,000 hours or 3 months
