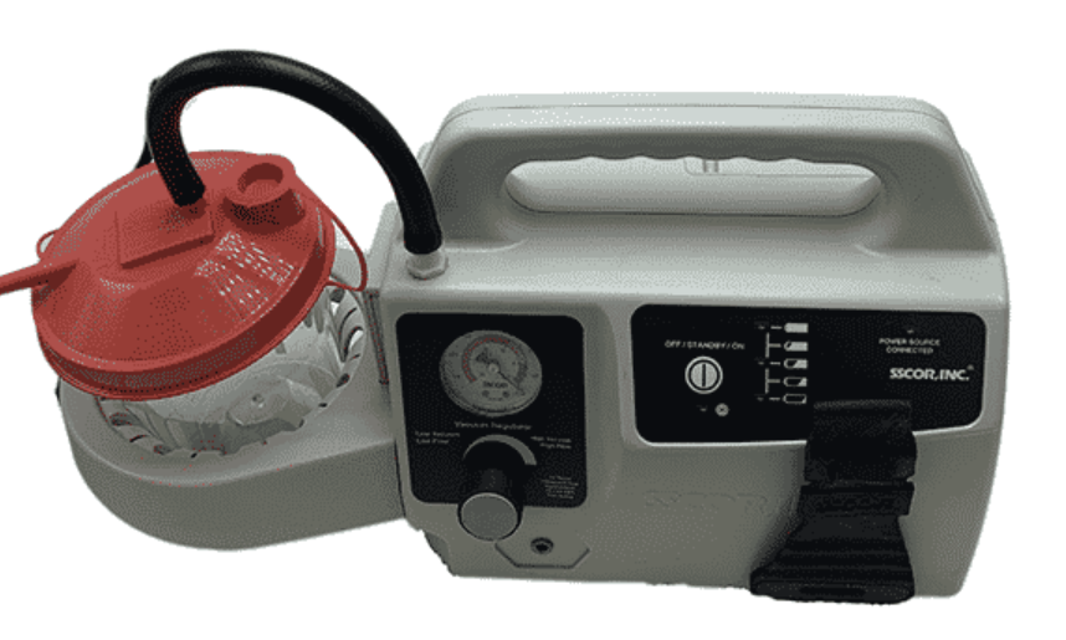

SSCOR Duet Portable Aspirator 2314

Disinfect with mild disinfectant (e.g., 10 to 1 bleach)

Rinse with clear water to remove residue

Remove screws holding the filter door in place

Replace soiled filter with new filter (SSCOR part number 90160)

Keep batteries on continuous charge when not in use

Test the SSCOR aspirator at regular intervals

Ensure the SSCOR aspirator is clean and ready for use

Check the vacuum line for moisture if excessive fluids were produced

Call technical assistance if needed

Visit shop.sscor.com for replacement parts and accessories

Avoid using lubricants on any part

Check that the power source connected LED on the control panel (3) and the green battery condition LED are lit.

Remove the power cord and run the unit from its internal DC battery.

Check for vacuum by occluding the patient tube and set the vacuum regulator (7) to the maximum vacuum setting.

Observe the regulator gauge (8). The vacuum reading should rise to -300mmHg from zero in less than 3 seconds. It should max out at ≥ -525mmHg.

Enter the initial vacuum reading time (seconds)

Enter the maximum vacuum reading (mmHg)

Allow the unit to run for 15 minutes on DC power.

Did the unit stop or slow during the 15 minutes, or did the battery condition indicators (4) begin to blink?

If the unit is still running at full power after 15 minutes, adjust the regulator to the desired setting, turn the device off and put it back on charge.

Is the canister expiration date valid?

Replace the canister if the expiration date has passed.

Charge the device for at least 8 hours.

Is the battery condition LED green when fully charged?

Ensure the following before starting the test

Unplug the device and turn it on to start the test.

Did the device run un-occluded for at least 41 minutes?
