LEXMARK
LEXMARK

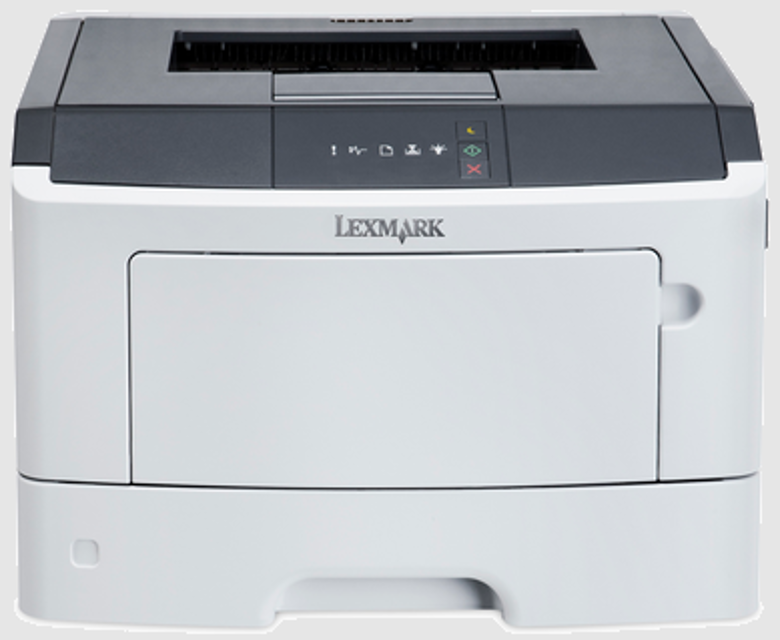

LEXMARK Printer MS310-D

Need answers fast?
Explore the manual using AI.

LEXMARK Printer MS310-D

View PDF Manual

Explore Maintenance Plans

LEXMARK Printer MS310-D

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for LEXMARK Printer MS310-D

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

LEXMARK Printer MS310-D

LEXMARK Printer MS310-D

Create an account to install this asset package.

Maintenance Plans for LEXMARK Printer Model MS310-D

Integrate maintenance plans directly into your work orders in MaintainX.

MPF Pick Roller Removal

Check mark

MPF Pick Roller Cover Removal

Check mark

Remove the MPF pick roller cover

Check mark

Refer to 'MPF pick roller cover removal' on page 179

Check mark

Screw Removal

Check mark

Remove the two screws (A)

Check mark

Use a #1 Phillips screwdriver

Check mark

MPF Pick Roller Removal

Check mark

Pull the MPF pick roller outward to remove

Check mark

Ensure not to touch the pick tire with bare hands

Run this procedureArrow right

Printhead Assembly Mechanical Adjustment

Check mark

Preparation

Check mark

Mark the screw locations of the old printhead on the metal frame using a pencil.

Check mark

Align the new printhead relative to the location of the old printhead.

Check mark

Skew Check

Check mark

Check for potential causes of skew

Check mark

Printhead Adjustment Procedure

Check mark

Power on the printer and enter the Diagnostics menu.

Check mark

Print a Quick test page from Diagnostics Menu > Cont Prt Simplex Tray 1.

Check mark

Fold the printed test page on the left side so that a few millimeters of grid lines wrap around the outside of the fold.

Run this procedureArrow right

Controller Board Removal

Check mark

Preparation

Check mark

Remove the right cover

Check mark

Disconnect all cables from the controller board

Check mark

Controller Board Removal

Check mark

Remove the three screws (A) from the rear side of the printer

Check mark

Remove the five screws (B) securing the controller board

Check mark

Post Removal Check

Check mark

Ensure all components are removed

Run this procedureArrow right

Duplex Gear Assembly Removal

Check mark

Remove the left cover

Check mark

Remove the rear door and cover

Check mark

Remove the power supply

Check mark

Remove the power supply shield

Check mark

Remove the duplex

Check mark

Position the printer so that it sits on its right side

Check mark

Remove the E‑clip (A)

Check mark

Remove the screw (B)

Check mark

Remove the screw (C)

Run this procedureArrow right

Front Access Cover Removal

Check mark

Remove the right cover

Check mark

Remove the front door

Check mark

Remove the nameplate

Check mark

Remove the MPF assembly

Check mark

Remove the bezel

Check mark

Remove the control panel assembly

Check mark

The front access cover remains

Run this procedureArrow right

Parts for LEXMARK Printer MS310-D

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Dust Cover (250-Sheet Tray)

40X8520

Rear Door And Cover

40X8054

Right Cover

40X8052

Front Access Cover

40X8056

Cartridge Plunger

40X9148

Dust Cover (250-Sheet Tray)

40X8520

Rear Door And Cover

40X8054

Right Cover

40X8052

Front Access Cover

40X8056

Cartridge Plunger

40X9148

Dust Cover (250-Sheet Tray)

40X8520

Rear Door And Cover

40X8054

Right Cover

40X8052

Front Access Cover

40X8056

Cartridge Plunger

40X9148
