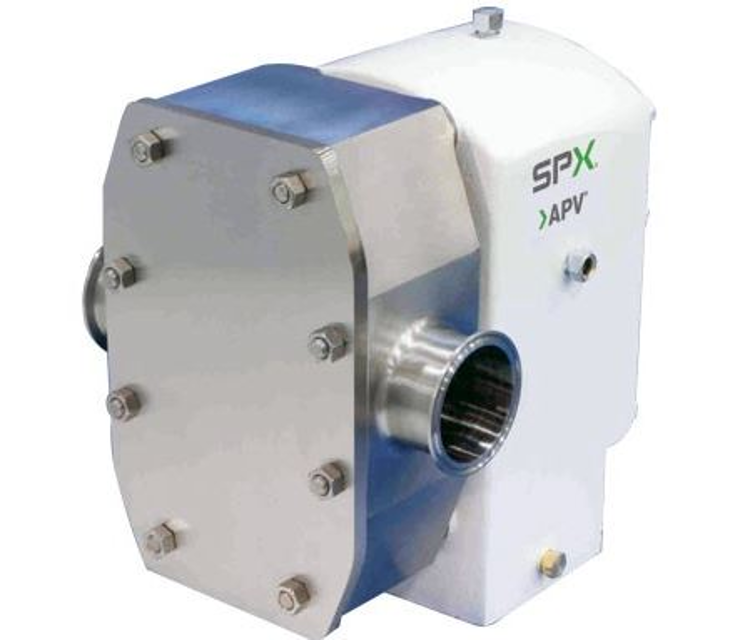

SPX Corporation Rotary Pump R1

To properly clean and sanitize the pump for use with food products, it may be necessary to use chemical solutions. Many of the commonly used chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Prior to using any rotary pump for the rst time, disassemble and hand clean the pump. Clean all inner and outer surfaces to remove any dirt, grit or lm that may have accumulated during shipment and installation.

1. Do Not use carbon steel wool. Particles may break o and become embedded, causing rust development.

2. Do Not use water high in iron, salt or sulfur. Use distilled water if possible.;

3. Do Not allow cleaners or bactericides to remain on surface for over 15 minutes.

4. Rinse all parts and surfaces exposed to corrosive cleaning solutions completely with cold water.

5. Do Not allow tools or other metal items to lie on wet stainless steel.

6. Only use recommended cleaners. Alkaline dairy cleaners or bactericides should contain a wetting agent and polyphosphate to suit water hardness.

Loosen the top and bottom bearing adjusting nuts

Rotate the top shaft back and forth

Tighten the top bearing adjusting nut until a slight resistance is felt

Mark the position of the top bearing adjusting nut and back it off one-half turn

Rotate the bottom shaft back and forth

Tighten the bottom bearing adjusting nut until a slight resistance is felt

Lock the bottom bearing adjusting nut set screw after adjusting

Turn the top bearing adjusting nut so that the marks line up

Warning: Use of chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Rubber mat placed under the immediate area of the pump?

Hex nuts, cover and gasket removed from the pump body?

Rotors removed from the pump shafts?

Gasket, cover and hex nuts installed on the pump body?

Outer areas of the pump and gearcase rinsed and cleaned?

Hex nuts, cover and gasket removed from the pump body after CIP of the system?

Pump body, two shaft seals, two bearing seals, two O-rings and two seal rings removed from the gearcase?

1. APV equipment is inspected prior to shipment. When leaving the factory, it is well crated for normal transportation procedures. APV cannot, however, guarantee safe arrival. Therefore, upon receipt of this equipment, check the received items against the packing list for damage or missing parts. Check the packing material thoroughly for small parts.

2. Visually inspect for damage or loss. Damage or loss should be reported immediately to the delivery carrier while present. Following the immediate notication of the lost or damaged parts, a detailed description including quantity, description of the loss or damage, and a cash value should be claimed against the carrier with respect to the guidelines set forth by the responsible carrier’s policies.

APV’s responsibility terminates F.O.B point of manufacture unless otherwise specied per the General Terms and Conditions of Sale as published by APV and amended from time to time. Contact APV Order Services if shipping information is required for handling claims.

3. In the case of damage or loss to the equipment, APV may perform three major functions:

a. Manufacturer Function – APV manufactures quality equipment and stands behind the APV Standard Warranty. Refer to the Standard Warranty.

b. Assessor Function – APV oers assessment services for ling claims. The APV assessor will accurately determine the extent of the damage (or loss) and cost of repairs to the equipment. Reimbursement for this service will be agreed upon prior to the assessment.

c. Repair House Function – APV oers services for repairing the damage(s) or replacement of loss(es) to the equipment. APV has the option to alter the Standard Warranty on refurbished or replacement parts. The cost of this service will be dependent upon the assessment that is made.;

Warning: Ensure the pump is not running and is cool before starting the procedure

Drain pan placed under drain plug

Drain plug removed and oil drained

Drain plug reinstalled after oil is completely drained

Filler plug removed and pump filled with high grade gear lube

Sign off on the oil change procedure
