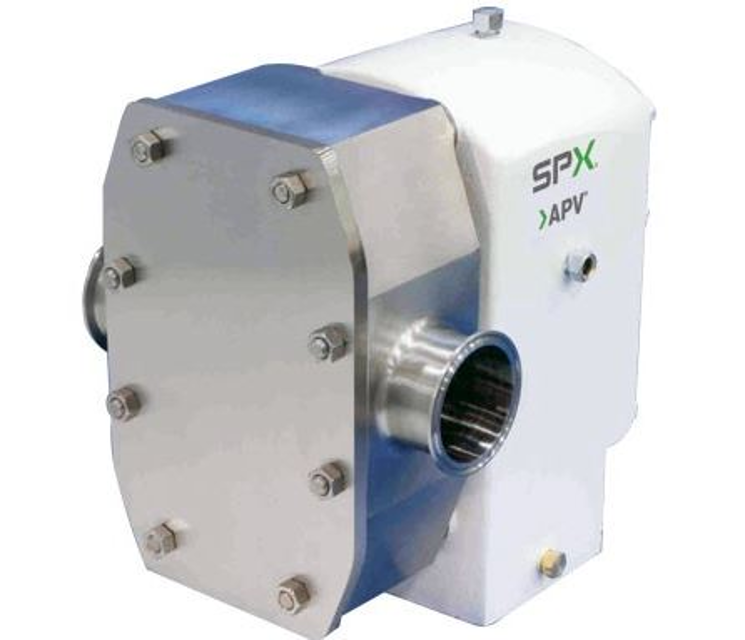

SPX Corporation Rotary Pump R3HDRI

Warning: Always lubricate parts after disassembly for cleaning or maintenance.

When processing food products, use a sanitary grade lubricant (approved for incidental contact with edible products) on all product contact surfaces during assembly.

Use high quality non-emulsifying gear oil.

Select the type of gear oil used

When processing food products, use a sanitary grade lubricant approved for incidental contact with edible products (USDA Classication H1) on all product contact surfaces after disassembly for cleaning or maintenance.

Was the pump properly lubricated?

Sign off on the pump lubrication

Warning: Ensure the pump is not running and is cool before starting the procedure

Drain pan placed under drain plug

Amount of high grade gear lube used

Pump filled to center of sight glass window

Check all hardware for tightness

Check vented cover for air leakage

*Applies only to pumps equipped with vented covers.

Check for product leakage in incoming and outgoing lines

Sign off on the weekly rotary pump check

To properly clean and sanitize the pump for use with food products, it may be necessary to use chemical solutions. Many of the commonly used chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Prior to using any rotary pump for the rst time, disassemble and hand clean the pump. Clean all inner and outer surfaces to remove any dirt, grit or lm that may have accumulated during shipment and installation.

1. Do Not use carbon steel wool. Particles may break o and become embedded, causing rust development.

2. Do Not use water high in iron, salt or sulfur. Use distilled water if possible.;

3. Do Not allow cleaners or bactericides to remain on surface for over 15 minutes.

4. Rinse all parts and surfaces exposed to corrosive cleaning solutions completely with cold water.

5. Do Not allow tools or other metal items to lie on wet stainless steel.

6. Only use recommended cleaners. Alkaline dairy cleaners or bactericides should contain a wetting agent and polyphosphate to suit water hardness.

APV equipment is inspected prior to shipment. When leaving the factory, it is well crated for normal transportation procedures. APV cannot, however, guarantee safe arrival.

Check the received items against the packing list for damage or missing parts

Check the packing material thoroughly for small parts

Damage or loss should be reported immediately to the delivery carrier while present.

Detailed description including quantity, description of the loss or damage, and a cash value

APV’s responsibility terminates F.O.B point of manufacture unless otherwise specified per the General Terms and Conditions of Sale as published by APV and amended from time to time. Contact APV Order Services if shipping information is required for handling claims.

In the case of damage or loss to the equipment, APV may perform three major functions:

Manufacturer Function – APV manufactures quality equipment and stands behind the APV Standard Warranty. Refer to the Standard Warranty.

Assessor Function – APV offers assessment services for filing claims. The APV assessor will accurately determine the extent of the damage (or loss) and cost of repairs to the equipment. Reimbursement for this service will be agreed upon prior to the assessment.
