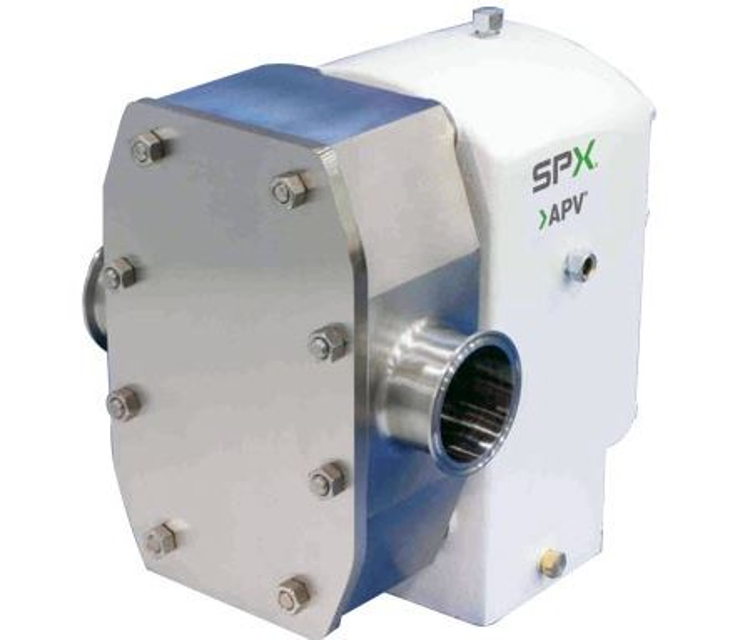

SPX Corporation Rotary Pump R4HDRI

Drain accumulated condensate from crankcase

Lubricate rotors with food grade lubricant

CIP pump (without rotors in place)

Lubricate shaft seals with food grade lubricant

Sign off on the daily rotary pump check

Warning: Ensure the pump is turned off and cooled down before starting the procedure

Drain pan placed under drain plug

Drain plug removed and oil drained

Drain plug reinstalled after oil is completely drained

Filler plug removed and pump filled with high grade gear lube

Sign off on the oil change procedure

1. APV equipment is inspected prior to shipment. When leaving the factory, it is well crated for normal transportation procedures. APV cannot, however, guarantee safe arrival. Therefore, upon receipt of this equipment, check the received items against the packing list for damage or missing parts. Check the packing material thoroughly for small parts.

2. Visually inspect for damage or loss. Damage or loss should be reported immediately to the delivery carrier while present. Following the immediate notication of the lost or damaged parts, a detailed description including quantity, description of the loss or damage, and a cash value should be claimed against the carrier with respect to the guidelines set forth by the responsible carrier’s policies.

APV’s responsibility terminates F.O.B point of manufacture unless otherwise specied per the General Terms and Conditions of Sale as published by APV and amended from time to time. Contact APV Order Services if shipping information is required for handling claims.

3. In the case of damage or loss to the equipment, APV may perform three major functions:

a. Manufacturer Function – APV manufactures quality equipment and stands behind the APV Standard Warranty. Refer to the Standard Warranty.

b. Assessor Function – APV oers assessment services for ling claims. The APV assessor will accurately determine the extent of the damage (or loss) and cost of repairs to the equipment. Reimbursement for this service will be agreed upon prior to the assessment.

c. Repair House Function – APV oers services for repairing the damage(s) or replacement of loss(es) to the equipment. APV has the option to alter the Standard Warranty on refurbished or replacement parts. The cost of this service will be dependent upon the assessment that is made.;

Warning: This cleaning procedure requires trained personnel with PPE!

Place a rubber mat under the immediate area of the pump to protect the parts which may drop accidentally.

Remove the product return tube and all other external piping as necessary.

Tighten the hex nuts until the pump body is firmly against all pads on the gearcase.

Remove the two bearing end caps from the cover.

Remove the hex head cap screws, lockwashers and bearing retainer plates from the shaft ends.

Remove the nuts, cover and gasket from pump body.

Remove the front shaft seals and bearing inner races.

Remove the seal bearings and spacer cartridges from the shafts.

Warning: Many of the commonly used chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Prior to using any rotary pump for the first time, disassemble and hand clean the pump. Clean all inner and outer surfaces to remove any dirt, grit or film that may have accumulated during shipment and installation.

Did you avoid using carbon steel wool?

Did you avoid using water high in iron, salt or sulfur?

Did you avoid allowing cleaners or bactericides to remain on surface for over 15 minutes?

Did you rinse all parts and surfaces exposed to corrosive cleaning solutions completely with cold water?

Did you avoid allowing tools or other metal items to lie on wet stainless steel?

Did you only use recommended cleaners?

If rust or discoloration occurred, did you polish the affected area immediately?
