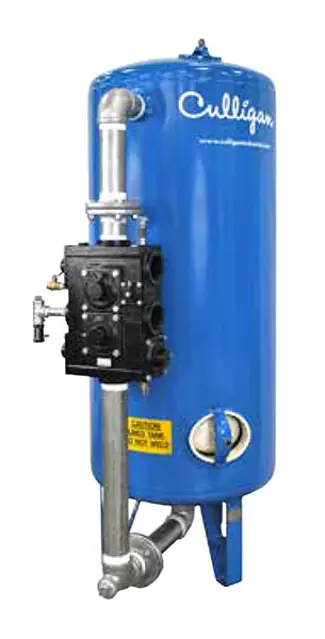

Culligan International Water Softener CSM-300-3

Need answers fast?
Explore the manual using AI.

Culligan International Water Softener CSM-300-3
Culligan International Water Softener CSM-300-3

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Culligan International Water Softener CSM-300-3

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Culligan International Water Softener CSM-300-3

Culligan International Water Softener CSM-300-3

Create an account to install this asset package.

Maintenance Plans for Culligan International Water Softener Model CSM-300-3

Integrate maintenance plans directly into your work orders in MaintainX.

Pilot Valve Assembly Removal

Check mark

Refer to steps 1 thru 3 under 'Pilot Valve Spool Removal & Replacement' on page 71.

Check mark

Mark and remove all pilot valve tube connections from the pilot valve body.

Check mark

Disconnect the four quick connect wire leads from the microswitches.

Check mark

Disconnect the two motor leads from the circuit board. See Figure 115 and Figure 116.

Check mark

Remove the 2 large panhead screws with nuts located at the bottom of the enclosure that secure the pilot valve body assembly. The pilot body assembly will now separate from the enclosure.

Check mark

Refer to 'Pilot Valve Assembly Replacement' on page 73 for reinstallation instructions.

Check mark

Sign off on the pilot valve assembly removal

Run this procedureArrow right

Pilot Valve Spool Removal & Replacement

Check mark

Close the manual inlet isolation valve, the manual outlet isolation valve, the manual brine valve, and any external source of pressure to the pilot valve assembly

Check mark

Depressurize the system following the instructions on page 65

Check mark

Disconnect the power to the MVP controller

Check mark

Manually rotate the position dial on the pilot valve clockwise to position #1 to relieve pressure

Check mark

Allow the flow of water to drain to stop

Check mark

Remove the panhead retaining screw located at the bottom front portion of the pilot valve body

Check mark

Pull the pilot valve spool assembly from the pilot valve body

Check mark

Using a screw driver, gently pry the retaining clip off of the pilot valve spool

Check mark

LIGHTLY lubricate all seals on the replacement pilot valve spool with Dow Corning #11 silicone grease

Run this procedureArrow right

Backwash Flow Controllers Service

Check mark

Warning: This service requires trained personnel with PPE!

Check mark

Is the Backwash Flow Controller plugged with scale, rust, or other foreign material?

Check mark

If the Backwash Flow Controller is not plugged, report the status to the maintenance team and stop the procedure

Check mark

Was the cleaning of the Backwash Flow Controller successful?

Check mark

Enter the backwash flow rate after cleaning

Check mark

Sign off on the Backwash Flow Controllers Service

Run this procedureArrow right

3 Monthly Entire System Inspection

Check mark

Warning: This procedure requires trained personnel with PPE!

Check mark

Sanitizing Procedure

Check mark

Is the water softener in daily use on a potable water supply?

Check mark

If the water supply contains iron, regenerate the softener before sanitizing to remove iron from the resin.

Check mark

CAUTION! HAZARD FROM TOXIC FUMES! CHLORINE BLEACH AND COMMON IRON CONTROL CHEMICALS MAY GENERATE TOXIC FUMES WHEN MIXED.

Check mark

IF THE UNIT USES CULLIGAN SOFNER-GARD® OR OTHER COMPOUNDS CONTAINING SODIUM HYDROSULFITE, SODIUM BISULFITE, OR ANY OTHER REDUCING AGENT, DISCONNECT THE DEVICE FEEDING THE CHEMICAL(S) AND MANUALLY REGENERATE THE UNIT BEFORE SANITIZING.

Check mark

DO NOT USE THIS PROCEDURE IF THE SOFTENER SALT CONTAINS IRON CONTROL ADDITIVES.

Check mark

Did you remove the brine tank cover?

Check mark

Enter the amount of common household bleach (5.25% sodium hypochlorite) for each cubic foot of resin in the tank.

Run this procedureArrow right

Backwash Flow Controller Reassembly

Check mark

Backwash Flow Control nipple replaced with compression fitting downstream of the flow washer

Check mark

Flexible tubing connected to the compression fitting in the side of the Backwash Flow Control nipple

Check mark

Clean-out plug inserted and tightened

Run this procedureArrow right
