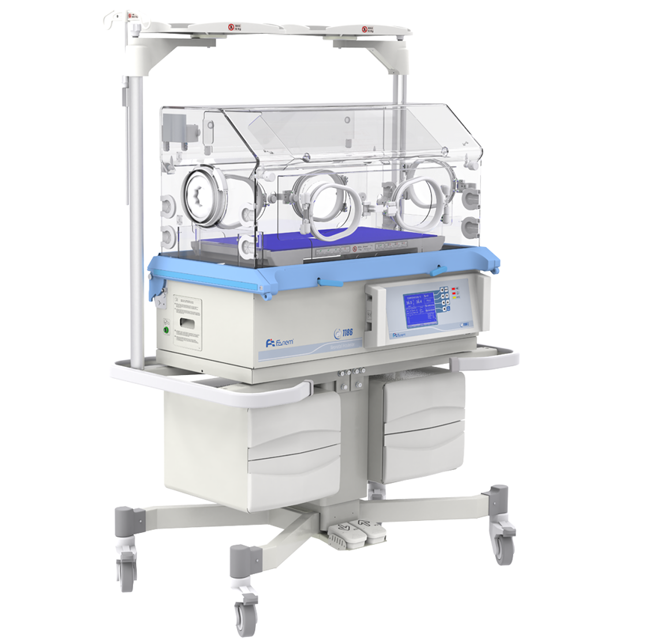

Fanem Incubator C1186A

Routine Checking Every 12 Months

Base Fixture made of atoxic PVC

Mattress Cover made of atoxic PVC;

This may be performed by means of simulation of the indicative alarm check up on the Control Panel.

Attention: When the “INHIBIT SOUND” key is actuated, inhibiting the alarm, the alarm will remain inactive during 15 minutes, and it goes into the active condition after this period of time has elapsed.

“High Temperature Alarm” in “Skin Mode”

“High Temperature Alarm” in “Air Mode”

“Low Temperature” Alarm in “Skin Mode”

“Low Temperature” Alarm in “Air Mode”

Elastic Handle with Oval Port replaced

Sign off on the incubator change

Warning: This procedure requires trained personnel only

Temperature calibration performed

Upload a photo of the display showing the maintenance performed

Sign off on the maintenance performed

9V BATTERY – Change the battery every 12 months

The 1186 Neonatal Incubator control units have a NiCd - 9V - - - type rechargeable battery which has the function of feeding the power failure alarm in case of power break.

This battery is auto-rechargeable with the normal use of the equipment and its useful life is estimated for 12 months and once this period has elapsed the battery must be substituted for a new original part.

Attention: Danger of Explosion, do not use common or alkaline battery. Use only rechargeable battery FANEM. Re.: 092.100.026. Access and substitution of this battery must only be performed by a trained technician.

In order to perform the battery substitution, one should unscrew the control unit front panel, actuating on the 4 lateral bolts of the controller unit, uncouple the front panel, remove the battery from its container and perform the substitution. The battery connector is polarized, thus eliminating the risk of inattentive connections.

Battery charge: For the full operation of this battery, it should be totally charged. The battery charge is performed when the incubator is turned on and the initial charge time must be 10 hours.;
