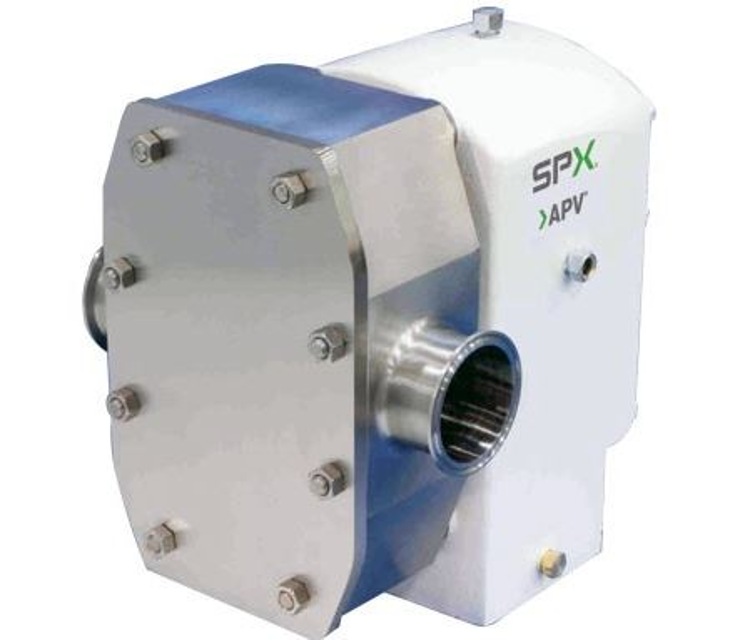

SPX Corporation Rotary Pump R4

To properly clean and sanitize the pump for use with food products, it may be necessary to use chemical solutions. Many of the commonly used chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Prior to using any rotary pump for the rst time, disassemble and hand clean the pump. Clean all inner and outer surfaces to remove any dirt, grit or lm that may have accumulated during shipment and installation.

1. Do Not use carbon steel wool. Particles may break o and become embedded, causing rust development.

2. Do Not use water high in iron, salt or sulfur. Use distilled water if possible.;

3. Do Not allow cleaners or bactericides to remain on surface for over 15 minutes.

4. Rinse all parts and surfaces exposed to corrosive cleaning solutions completely with cold water.

5. Do Not allow tools or other metal items to lie on wet stainless steel.

6. Only use recommended cleaners. Alkaline dairy cleaners or bactericides should contain a wetting agent and polyphosphate to suit water hardness.

Warning: Disassemble pump before checking rotation

Discharge on the right when the top rotor turns clockwise

Discharge on the left when the top rotor turns counterclockwise

Two seal pressure relief grooves on the discharge side of the pump

Oversized stud hole and special large hex stud for correct mounting

Hex shaped stud in the upper left hand position for discharge on the right

Interchange hex stud with lower right hand stud for discharge on the left

Sign off on the rotary pump check

Warning: Ensure the pump is not running and is cool before starting the procedure

Drain pan placed under drain plug

Amount of high grade gear lube added

Drain accumulated condensate from crankcase

Lubricate rotors with food grade lubricant

CIP pump (without rotors in place)

Lubricate shaft seals with food grade lubricant

Sign off on the daily rotary pump check

Loosen the top and bottom bearing adjusting nuts

Rotate the top shaft back and forth

Tighten the top bearing adjusting nut until a slight resistance to the top shaft is felt

Mark the position of the top bearing adjusting nut and back it off one-half turn

Rotate the bottom shaft back and forth

Tighten the bottom bearing adjusting nut until a slight resistance to the bottom shaft is felt

Lock the bottom bearing adjusting nut set screw after adjusting

Turn the top bearing adjusting nut so that the marks line up
