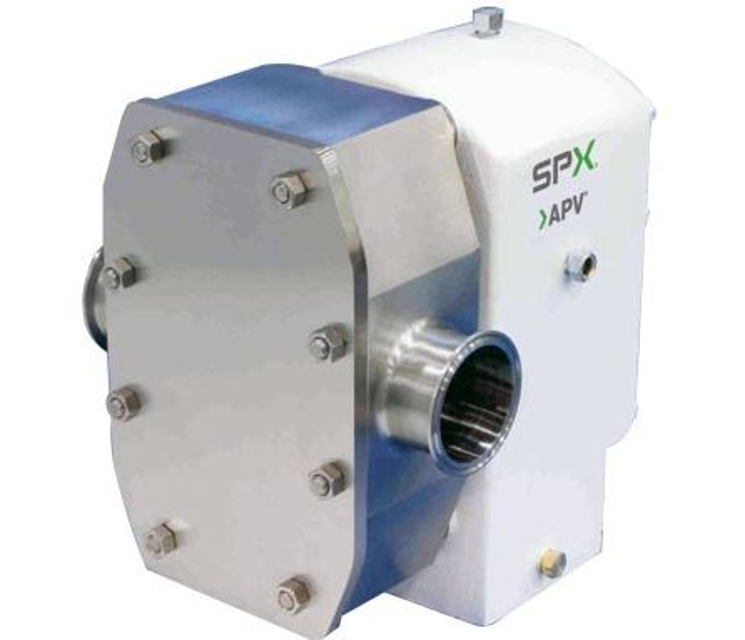

SPX Corporation Rotary Pump R4HD

Pump discharge pressure tends to push the rubber cover gasket and plunger towards the front of the pump. This pressure compresses spring allowing pressure to be relieved by escaping via the rear side of the gasket and the recess of the outer cover. The venting pressure can be set by adjusting spring tension with the adjusting nut.

1. Place a pressure gauge in the downstream line close to the pump; between the pump and other downstream equipment.

2. Place a shut-o valve in the discharge line immediately downstream from the pressure gauge. Leave the valve wide open.

3. Loosen the lock nut and turn the adjusting nut clockwise as far as it will go. This is to prevent any venting during Step 4 below.

4. Pump product through system at the desired temperature and adjust the pump speed until the desired capacity is attained.

5. Check the pressure gauge for the desired pumping pressure. Example: 40 psig (2.8 kg/cm2).

6. Determine the venting pressure needed to protect the system. Example: 45 psig (3.15 kg/cm2). Venting pressure must always be higher than the pumping pressure.

7. Now turn the adjusting nut counterclockwise until only two or three threads are engaged.

Warning: Ensure the pump is not running and is cool before starting the procedure

Drain pan placed under drain plug

Amount of high grade gear lube used

Pump filled to center of sight glass window

To properly clean and sanitize the pump for use with food products, it may be necessary to use chemical solutions. Many of the commonly used chemical solutions could cause severe injury to personnel if contacted. The hazard is especially severe for eyes, skin, or inhalation.

Prior to using any rotary pump for the rst time, disassemble and hand clean the pump. Clean all inner and outer surfaces to remove any dirt, grit or lm that may have accumulated during shipment and installation.

1. Do Not use carbon steel wool. Particles may break o and become embedded, causing rust development.

2. Do Not use water high in iron, salt or sulfur. Use distilled water if possible.;

3. Do Not allow cleaners or bactericides to remain on surface for over 15 minutes.

4. Rinse all parts and surfaces exposed to corrosive cleaning solutions completely with cold water.

5. Do Not allow tools or other metal items to lie on wet stainless steel.

6. Only use recommended cleaners. Alkaline dairy cleaners or bactericides should contain a wetting agent and polyphosphate to suit water hardness.

1. APV equipment is inspected prior to shipment. When leaving the factory, it is well crated for normal transportation procedures. APV cannot, however, guarantee safe arrival. Therefore, upon receipt of this equipment, check the received items against the packing list for damage or missing parts. Check the packing material thoroughly for small parts.

2. Visually inspect for damage or loss. Damage or loss should be reported immediately to the delivery carrier while present. Following the immediate notication of the lost or damaged parts, a detailed description including quantity, description of the loss or damage, and a cash value should be claimed against the carrier with respect to the guidelines set forth by the responsible carrier’s policies.

APV’s responsibility terminates F.O.B point of manufacture unless otherwise specied per the General Terms and Conditions of Sale as published by APV and amended from time to time. Contact APV Order Services if shipping information is required for handling claims.

3. In the case of damage or loss to the equipment, APV may perform three major functions:

a. Manufacturer Function – APV manufactures quality equipment and stands behind the APV Standard Warranty. Refer to the Standard Warranty.

b. Assessor Function – APV oers assessment services for ling claims. The APV assessor will accurately determine the extent of the damage (or loss) and cost of repairs to the equipment. Reimbursement for this service will be agreed upon prior to the assessment.

c. Repair House Function – APV oers services for repairing the damage(s) or replacement of loss(es) to the equipment. APV has the option to alter the Standard Warranty on refurbished or replacement parts. The cost of this service will be dependent upon the assessment that is made.;

Loosen the set screws and the top and bottom bearing adjusting nuts

Rotate the top shaft back and forth and adjust the top bearing adjusting nut

Rotate the bottom shaft back and forth and adjust the bottom bearing adjusting nut

Lock the bottom bearing adjusting nut set screw after adjusting

Align the marks on the top bearing adjusting nut

Lock the top bearing adjusting nut set screw after aligning marks

Replace the bearing if the shafts are still loose after adjustment

Sign off on the rotary pump bearing adjustment
