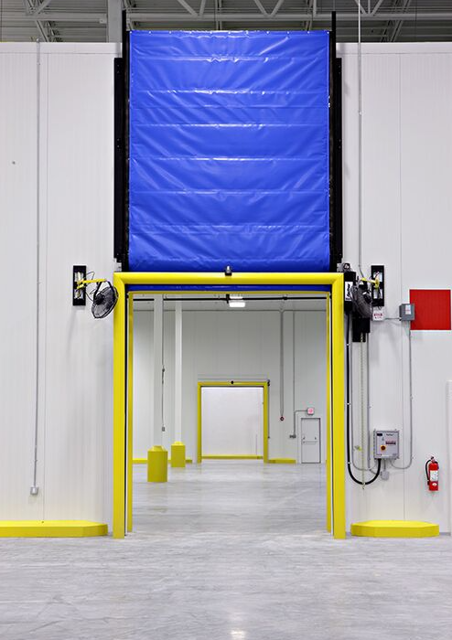

Rite-Hite High Speed Door Fastrax LD

Warning: Do not change the location of photoeyes. They must be at 18in [457mm] and 54in [1372mm].

Locate the receiver photoeye (A) on the drive side lower track.

Orange LED (B) is on when the output is energized

If the green LED (C) is blinking, either the photoeye is out of alignment or the short circuit protection of the photoeye has been triggered.

Green LED (C) indicates if the photoeye has power

The source photoeye on the non‑drive lower track will only have the green LED for power.

Sign off on the photoeye adjustment

Curtain Fans (Optional): Verify that curtain fans are powered and working. Make sure that the fans are positioned properly and are removing condensation from the curtain.

Auto Re‑Feed: Verify auto re‑feed is operational.

Curtain: Inspect for wear or damage; patch immediately to prevent condensation or frost buildup. Clean with warm soapy water. Check drive spheres; if missing or damaged, replace. Check top roller.

Perimeter Seal (FR): Free of tears and providing an adequate seal against curtain and the wall. If torn, patch immediately to prevent condensation build‑up.

Vision (not on FR): Inspect vision for tears or separation. Clean with warm soapy water.

Radial and Track Lubrication: Lubrication of radials and tracks may be required more than every 6 months, based on usage and environmental conditions.

Lubrication of the radials and tracks is the sole responsibility of the end user. If door is mounted in a dirty environment, it may be required to remove the existing grease prior to adding new.;

Loosen lock collar (C) using 2mm Allen wrench and slide encoder off of shaft (A)

Install new encoder, tighten lock collar (14in-lb. [1.5Nm]), line up notch and screw connector

Proceed to 'Limit (Encoder) Set-up' on page 68

Sign off on the encoder replacement

Warning: This procedure requires trained personnel with PPE!

Adhesive applied to curtain edge drive sphere stud

Adhesive applied to stud before tightening

Adhesive oozed out both sides after stud is tightened

Stud tightened prior to adhesive starting to dry

Sign off on the drive sphere replacement

Power turned off and Lockout Procedure followed

Screws (C) removed and edging slid out through the top of the track (B) without catching on photoeyes

New retention strip slid into track without catching on photoeyes and holes aligned with photoeyes

NOTE: Per the top view (A), orient the longer leg of the 'J' toward the lower track and the groove away from the track.

Strip fastened with screws (C) at the bottom of track without screwing strip to lower track, other than at the bottom.

Sign off on the retention strip replacement
