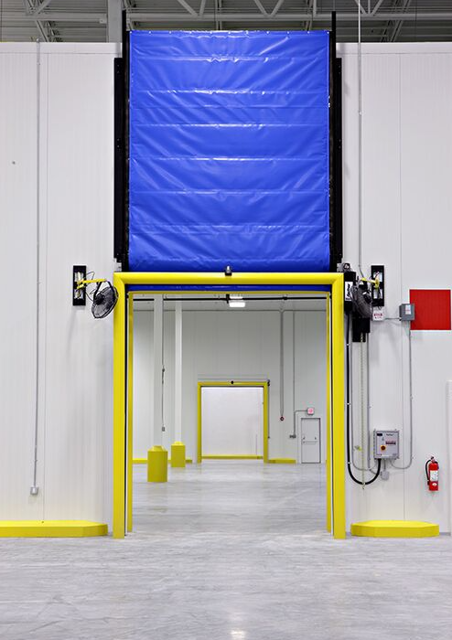

Rite-Hite High Speed Door Fastrax

Curtain fans are powered and working

Fans are positioned properly and are removing condensation from the curtain

Curtain is free of wear or damage

Drive spheres are present and undamaged

Top roller is in good condition

Perimeter Seal (FR) is free of tears and providing an adequate seal against curtain and the wall

Upload a photo of the Perimeter Seal (FR)

Loosen lock collar (C) using 2mm Allen wrench and slide encoder off of shaft (A)

Install new encoder, tighten lock collar (14in-lb. [1.5Nm]), line up notch and screw connector

Proceed to 'Limit (Encoder) Set-up' on page 68

Warning: Do not change the location of photoeyes. They must be at 18in [457mm] and 54in [1372mm].

Locate the receiver photoeye (A) on the drive side lower track.

Orange LED (B) is on when the output is energized

Green LED (C) indicates if the photoeye has power

The source photoeye on the non‑drive lower track will only have the green LED for power.

Sign off on the photoeye adjustment

Power turned off and 'Lockout Procedure' followed

Screws (C) holding retention strip removed and edging slid out through the top of the track (B) without catching on photoeyes

New retention strip slid into track without catching on photoeyes and holes aligned with photoeyes

NOTE: Per the top view (A), orient the longer leg of the 'J' toward the lower track and the groove away from the track

Strip fastened with screws (C) at the bottom of track. Strip not screwed to lower track, other than at the bottom

Sign off on the retention strip replacement

All connections clean and checked with disconnect off

All wires are free from moving parts

Visual inspection for damage performed

Dust and debris removed using air hose
