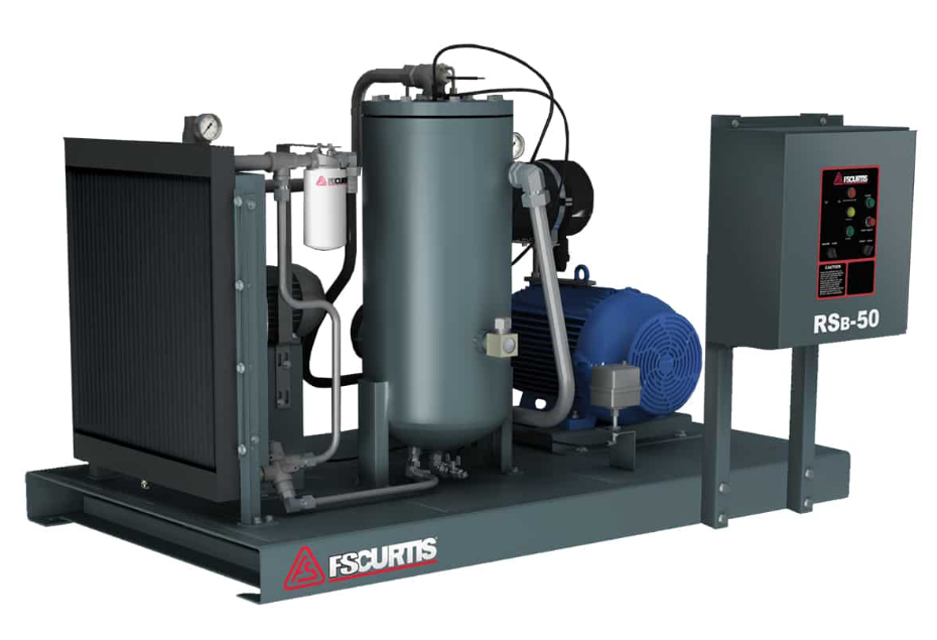

Curtis-Toledo Oil-Injected Rotary Screw Compressor RSB 25

CAUTION: Shut down the unit, disconnect the power, lockout and tag to prevent accidental restarting.

Waited one (1) minute after the compressor stops to allow the pressure to be relieved?

Cleaned the dirt from around the fill plug?

Loosened the fill plug and made sure any additional pressure is relieved through the vent hole, then removed?

Removed the drain plug from the end of the drain line at the bottom of the separator tank?

Opened the ball valve and allowed the oil to drain?

When the oil has completely drained, closed the ball valve and replaced the drain plug?

Refilled with FS CURTIS LUBERPLUS FSC8000 Compressor lubricant?

Replaced the fill cap and tightened securely?

WARNING: Shut down the unit, disconnect the power, lockout and tag to prevent accidental restarting.

Waited one (1) minute after the compressor stops to allow for the pressure to be relieved?

Using a strap wrench, removed the old filter from the filter head?

Cleaned the gasket contact surface on the inside of the filter head?

Applied a light film of the compressor oil to the gasket surface on the new element?

Hand tightened the new element until the gasket is seated in the gasket groove?

Continued tightening the element by hand an additional ½ to ¾ turn?

Restarted the unit and checked for leaks?

Sign off on the oil filter replacement

In normal operation the thermostatic valve controls the oil temperature and prevents moisture contamination of the oil. Malfunction of this valve may result in moisture in the oil system that can damage the compressor and cause oil carry-over.

A failure of the element in the closed position will divert the lubricant from the oil cooler and result in the unit shutting down due to high temperature.

A repair kit is available for this valve to replace the wearable components. Consult the parts list for your compressor to obtain the part number for this repair kit.

DANGER: Before performing any maintenance be sure the electrical supply has been cut off, locked and tagged and that all pressure has been relieved from the compressor system.

Thermostatic Control Valve Repair (Figure 5-6)

1. Place a spill pan under the valve.

2. Remove the snap ring from the top of the valve body. The valve is spring loaded and the cap may pop up when the ring is removed.

3. Remove the cap and internal parts taking care to note the orientation of the spring, piston and element.

4. Reassemble with the renewal parts. Take care when replacing the cap not to cut the “O” ring or put undue stress on the attached piping.

Check sump oil level (fill if necessary)

Check oil scavenger line for oil flow

Check pressure operating point and controls

Drain condensate from air receiver

QUARTERLY SERVICE KITS = oil filter + oil analysis;
