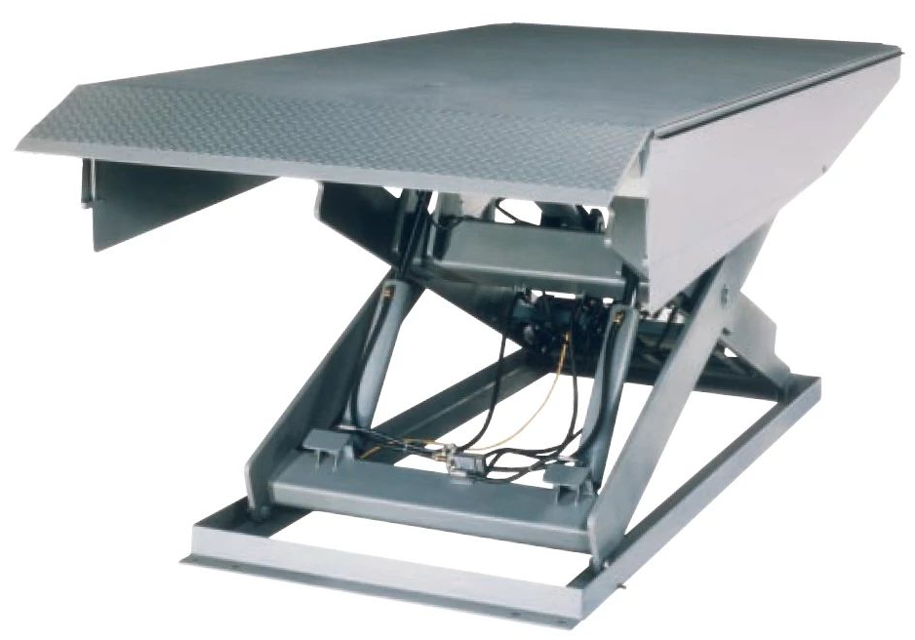

Rite-Hite Leveler DD20126.5

Create an account to install this asset package.

Maintenance Plans for Rite-Hite Leveler Model DD20126.5

Integrate maintenance plans directly into your work orders in MaintainX.

365 Daily Leveler Maintenance

DANGER: Never be under the DUAL-DOK® 2000 platform or lip without:

Engaging the support latch by pulling the activation chain and pressing and holding the Lift DOWN button until the platform stops descending, as shown on page iii, Figure A1

Pulling the selector valve activation chain out to prevent scissors movement, as shown on page iv, Figure B

If lip needs to be extended, follow procedures on page iv, Figure C

Turning off power to the control box

Locking out and tagging out the main power source, as shown on inside front cover

WARNING:

Follow all safety procedures of the facility where the DUAL-DOK® 2000 system is installed

Place barriers at ground level and dock level indicating that service work is being performed

Run this procedure

90 Daily Leveler Maintenance

DANGER: Never be under the DUAL-DOK® 2000 platform or lip without:

Engaging the support latch by pulling the activation chain and pressing and holding the Lift DOWN button until the platform stops descending

Pulling the selector valve activation chain out to prevent scissors movement

If lip needs to be extended, follow procedures

Turning off power to the control box

Locking out and tagging out the main power source

WARNING: Follow all safety procedures of the facility where the DUAL-DOK® 2000 system is installed.

Place barriers at ground level and dock level indicating that service work is being performed.

Perform all Daily maintenance procedures.

Run this procedure

1 Daily Leveler Maintenance

DANGER: Never be under the DUAL-DOK® 2000 platform or lip without:

Engaging the support latch by pulling the activation chain and pressing and holding the Lift DOWN button until the platform stops descending

Pulling the selector valve activation chain out to prevent scissors movement

If lip needs to be extended, follow procedures

Turning off power to the control box

Locking out and tagging out the main power source

WARNING:

Follow all safety procedures of the facility where the DUAL-DOK® 2000 system is installed

Place barriers at ground level and dock level indicating that service work is being performed

Run this procedure

180 Daily Leveler Maintenance

DANGER: Never be under the DUAL-DOK® 2000 platform or lip without:

Engaging the support latch by pulling the activation chain and pressing and holding the Lift DOWN button until the platform stops descending

Pulling the selector valve activation chain out to prevent scissors movement

If lip needs to be extended, follow procedures

Turning off power to the control box

Locking out and tagging out the main power source

WARNING: Follow all safety procedures of the facility where the DUAL-DOK® 2000 system is installed.

Place barriers at ground level and dock level indicating that service work is being performed.

Perform all Daily and 90 Day maintenance procedures.

Run this procedure

1 Yearly Hydraulic Fluid Change

NOTE: Frequency of maintenance may need to change if equipment is installed in an extremely dusty or hot environment. Use only MIL-H-5606 hydraulic fluid.

Normal Usage: Hydraulic Fluid Change

8 hours daily: Every 3 years

16 hours daily: Every 2 years

24 hours daily: Every year

1. Engage the safety devices as described in the following Danger.

DANGER: Never be under the DUAL-DOK® 2000 platform or lip without:

a. Engaging the support latch by pulling the activation chain and pressing and holding the Lift DOWN button until the platform stops descending, as shown on page iii, Figure A1,

b. Pulling the selector valve activation chain out to prevent scissors movement, as shown on page iv, Figure B,

Run this procedure
