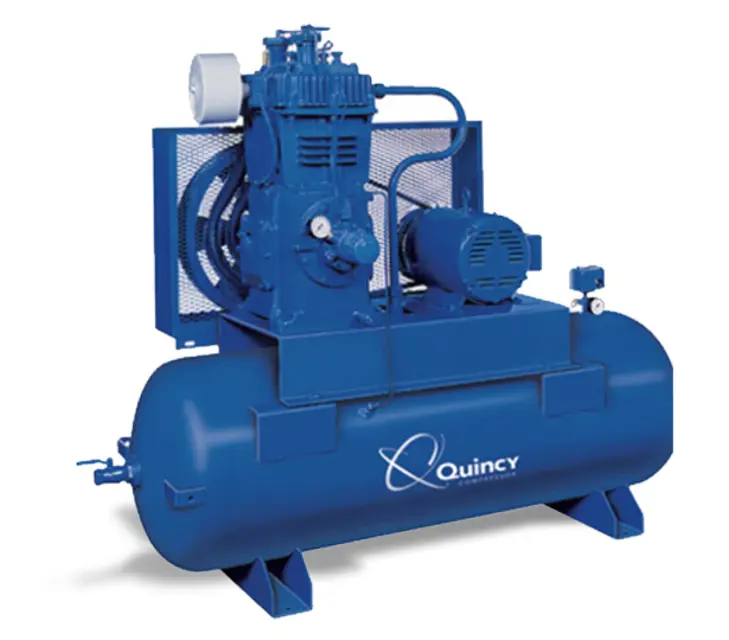

Quincy Compressor QC15103S1A

Was the lubricant changed under humid or dirty conditions?

Oil Sump Strainer Screen Cleaning

Clean the oil sump strainer screen with a safety solvent (QR Models only)

Torque compressor sheave fasteners per specifications

Belt Tension & Alignment Measurement

Place a straightedge against the face of the flywheel, touching its rim at two places

Adjust the motor pulley so that the belt runs parallel to the straightedge

Use a wheel puller to move the motor pulley on the shaft

Lubricate the electric motor following manufacturer’s recommendations

Check lubricant levels for QT-5, QT-7.5 & QT-10

Check lubricant levels for all other models

Drain drop legs and traps in air distribution system

Perform overall visual inspection of the compressor

Ensure all safety guards are in place

Check for any unusual noise or vibration

Enter lubricant pressure (hot) for QR Models

Hydrostatical Air Tank Inspection

Review Fig. 3-13 for recommended air tank inspection intervals

Refer to federal, state, provincial, or local codes for mandatory air tank maintenance information

Tank Wall Thickness Measurement

Measure tank wall thickness at the lowest point where condensation can accumulate

Measure tank wall thickness at various other locations

Record any observations or anomalies found during inspection
