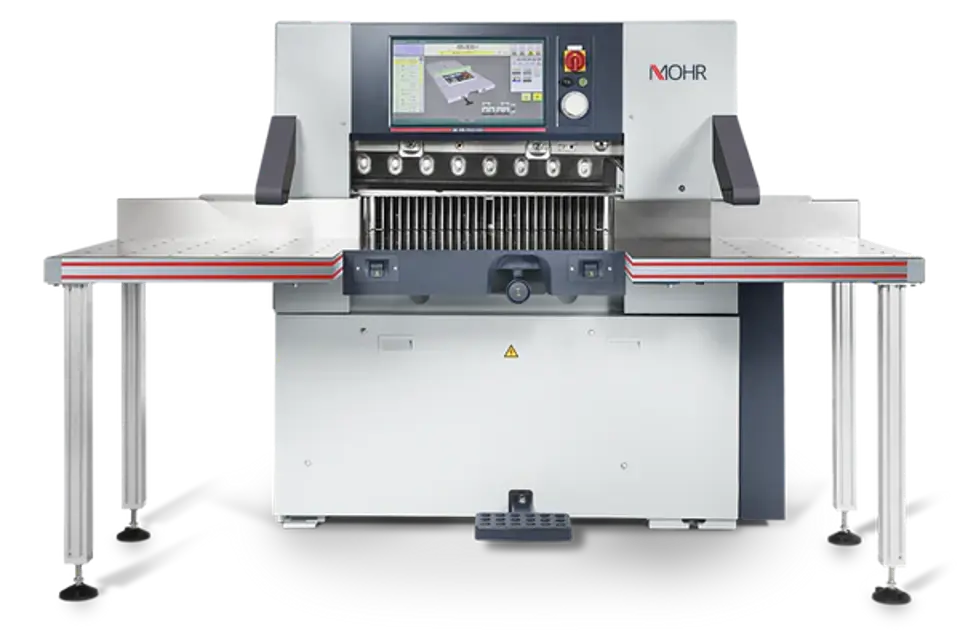

Adolf Mohr Maschinenfabrik High-Speed Paper Cutter 78- ED

BACKGAUGE GUIDE RAILS (only 78, 92, 115, 137, 155)

Ensure the machine is turned off and secured

Locate the 2 lubricating nipples on the backgauge

Enter the number of strokes applied with the grease gun

Apply grease using the grease gun to the lubricating nipples

Is the lubrication chart updated with the current date?

Ensure lubrication of the following components

Apply grease strokes with grease gun

Is the lubrication schedule followed?

Verify all components are properly lubricated

Ensure the machine is turned off and cooled down

Gather necessary tools and equipment

Check for any leaks around the oil drain plug

Place an oil pan under the drain plug

Remove the oil drain plug carefully

Install the oil drain plug securely

Warning: Attention when bleeding hot oil - danger of burning!

Ensure the machine is turned off and cooled down

Gather necessary tools and equipment for oil change

Locate the hydraulic unit inside the right frame pillar

Place a container to collect old oil

Bleed the hot oil carefully to avoid burns

Dispose of old oil according to environmental regulations

Warning: Attention when bleeding hot oil - danger of burning!

Ensure hydraulic unit is mounted inside right frame pillar

Record the current operating hours of the machine

Has the oil been changed approximately every 6000 hours?

Bleed hot oil carefully to avoid burns
