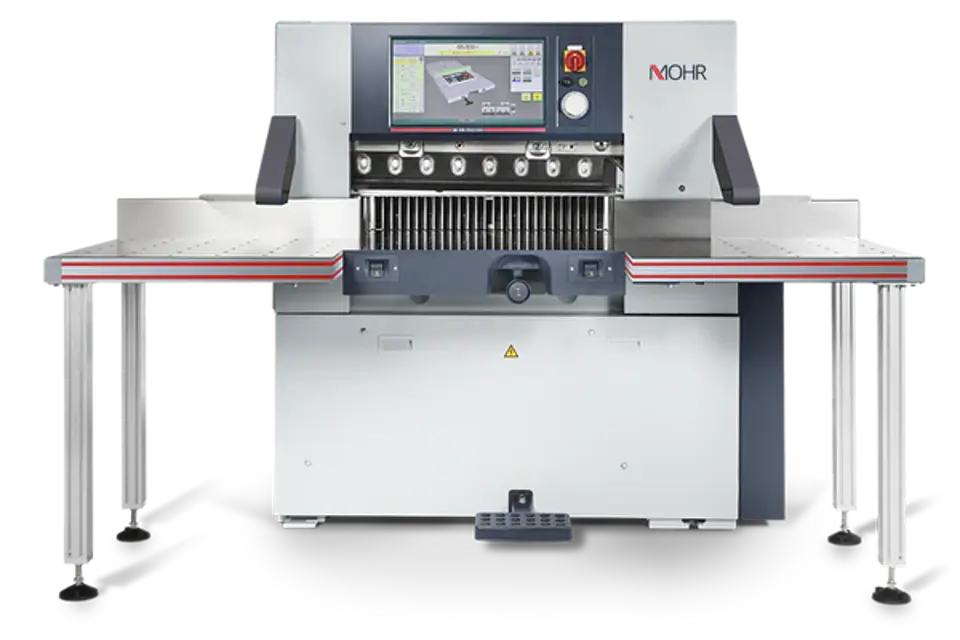

Adolf Mohr Maschinenfabrik High-Speed Paper Cutter 137- ED

Warning: Attention when bleeding hot oil - danger of burning!

Ensure the machine is turned off and cooled down

Gather necessary tools and equipment for oil change

Locate the hydraulic unit inside the right frame pillar

Prepare a container for old oil collection

Bleed the hot oil carefully to avoid burns

Replace the old oil with new hydraulic oil

Ensure lubrication of the following parts

Apply grease strokes with grease gun

Is the lubrication schedule followed?

Warning: Attention when bleeding hot oil - danger of burning!

Ensure hydraulic unit is mounted inside right frame pillar

Record the current operating hours of the machine

Has the oil been changed within the last 6000 hours?

Change the oil if it has not been changed within the last 6000 hours

BACKGAUGE GUIDE RAILS (only 78, 92, 115, 137, 155)

Ensure the machine is turned off and secured

Identify the backgauge guide rails

Locate the 2 lubricating nipples on the backgauge

Perform strokes with grease gun

Check if the lubrication was successful

Clean any excess grease from the area

First oil change: after approx. 500 hrs.

Verify that the oil is not too hot to handle

Open the oil drain valve carefully

Allow all old oil to completely drain out

Fill oil to the middle of oil sight glass
